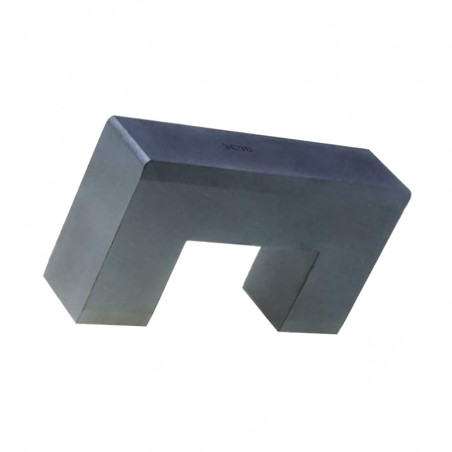

Cores U, I and Accessories
  • Cores U, I and Accessories

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FERROXCUBE

Cores U, I and Accessories

U, I cores [&] accessories

Core type Ve
[mm3]
Ae
[mm2]
Mass
[g]
Datasheets

U10/8/3

309 8.07  0.9  U1083.pdf

U15/11/6

1680 32.3  4 U15116.pdf

U20/16/7

3800 56 9 U20167.pdf

U25/16/6

3380 40.3  8 U25166.pdf

I25/6/6

2590 40.3  4.5  I2566.pdf

U25/20/13

9180 104 23.5  U252013.pdf

U30/25/16

17900 161 43 U302516.pdf

U33/22/9

9490 86.5  24 U33229.pdf

U46/40/28

71300 392 182 U464028.pdf

U67/27/14

35200 204 85 U672714.pdf

U80/65/32

219000 706 560 U806532.pdf

U93/76/16

159000 448 400 U937616.pdf

I93/28/16

200 I932816.pdf

U93/52/30

217000 840 560 U935230.pdf

U93/76/30

297000 840 760 U937630.pdf

I93/28/30

370 I932830.pdf

U100/57/25

199000 645 500 U1005725.pdf

I100/25/25

300 I1002525.pdf

U126/91/20

268800 560 680 U1269120.pdf
