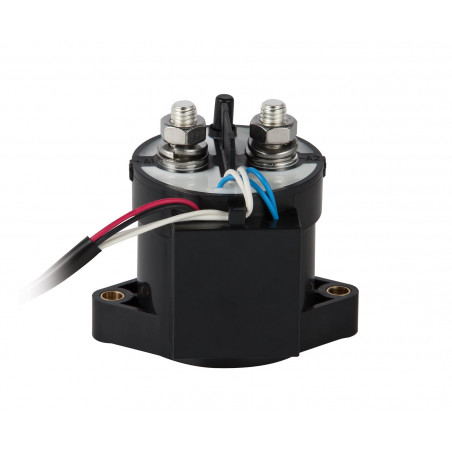

Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
Application
Magnet coil ratings
Nominal voltage(V) | Inrush Coil current 100ms (Max.) | Holding Coil current (mA) | Pick-up voltage (V)Max. | Drop-out voltage (V)Min. | Holding voltage (V)Min. | Max. voltage (V)Max. | |
---|---|---|---|---|---|---|---|
B | 72 | 1.3A | 0.05~0.12A | 32VDC | 18VDC | 22VDC | 95VDC |
60 | |||||||
36 | |||||||
A | 36 | 2.4A | 0.09A | 9VDC | 6VDC | 7.5VDC | 36VDC |
24 | 2.4A | 0.14A | |||||
12 | 2.4A | 0.29A | |||||
12 | 2.4A | 0.29A | 9VDC | 6VDC | 7.5VDC | 18VDC | |
24 | 1.3A | 0.17A | 18VDC | 12VDC | 13.5VDC | 32VDC |
Contact ratings
Type | 1Pole Resistive load (L/R≤1㎳) |
---|---|
Max. Continuous current (wire size 300㎟) | 500A |
Max. switching current | 250A |
Max. switching capacity at max. voltages | 900VDC 200A |
Contact rating switching voltages | 12~1200VDC |
Max. cut-off current | 600VDC 1000A 3 Ops / 400VDC 1500A 2 Ops |
C-R load (charging) | 500V 1500A 4,000 Ops / 500V 500A 30,000 Ops |
Voltage drop across contacts per 100A | 30mV Max. |
Min. permissible load | 12V DC 0.5A |
Description | S.P On/Off (a) |
Contact Arrangement, auxiliary contacts | 1Form A (SPST-NO.) |
General Aux. Contact Current, Max. | 2A 30VDC / 3A 125VAC |
General Aux. Contact Current, Min. | 100mA 8VDC |
Gold alloy Aux. Contacts Max. | 0.1A 30VDC / 0.1A 30VAC |
Gold alloy Aux. Contacts Min. | 1mA 5VDC / 1mA 5VAC |
Characteristics
Initial insulation resistance | Min. 100㏁ 500V DC | ||
---|---|---|---|
Expected life | Mechanical (Min.) | 2×106 | |
Electric (L/R≤1㎳) | 450V DC 10A | 7×103 | |
750V DC 250A | 3×103 | ||
Initial insulation resistance | Min. 100㏁ 500V DC | ||
Initial breakdown voltage | Between open contacts | 4000V AC 60 Sec. 5mA | |
Between contacts & coil | 4000V AC 60 Sec. 5mA | ||
Operate time (at 20℃) | Max. 30㎳ | ||
Release time (at 20℃) | Max. 10㎳ | ||
Shock resistance | Functional | Min 196 ㎨ {20G} | |
Destructive | Min 490 ㎨ {50G} | ||
Vibration resistance | Functional | 100 ㎨ {10G} 10 to 500㎐ | |
Destructive | 100 ㎨ {10G} 10 to 500㎐ | ||
Conditions for operation transport and storage | Ambient temperature | -40℃ to +85℃ | |
Humidity | 5 to 85% R.H. | ||
Unit weight | 460g |
