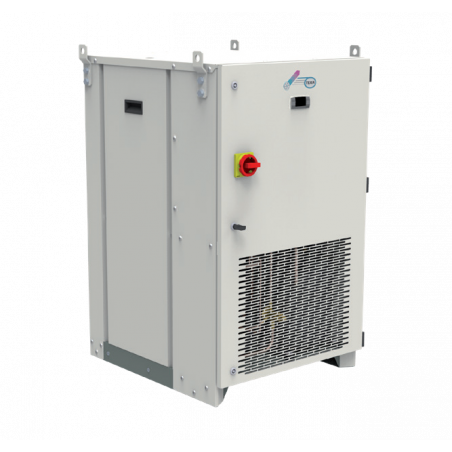

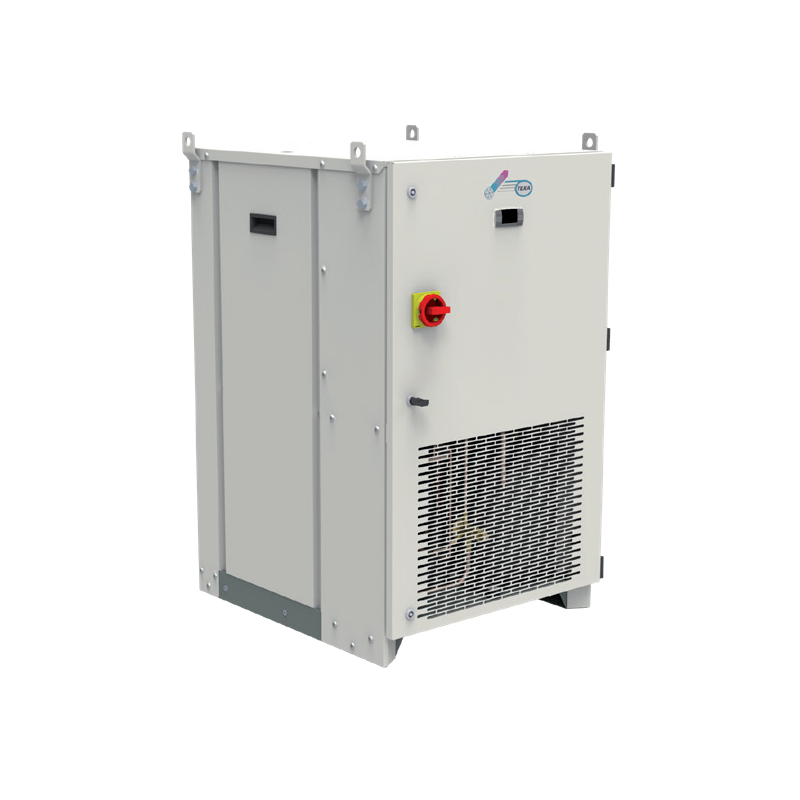

TCU22-55 Enfriadores industriales trifásicos tamaño 1 para fluidos contaminados o sucios
  • TCU22-55 Enfriadores industriales trifásicos tamaño 1 para fluidos contaminados o sucios
  • TCU22-55 Enfriadores industriales trifásicos tamaño 1 para fluidos contaminados o sucios

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: TEXA industries

TCU22-55 Enfriadores industriales trifásicos tamaño 1 para fluidos contaminados o sucios

TCU22-55 Size 1 Three Phase

Industrial chillers for contaminated or dirty fluids

AXIAL FAN
Axial fan, complete with thermal cut-out and safety grille.
FLUID POWER CIRCUIT
Fluid power circuit with centrifugal pump without tank, with maximum available pressure 3 bar, dual oil safety pressure switch, 0-10 bar oil pressure gauge, regulation sensor.
ELECTRICAL PANEL
With main disconnect switch, relay motor protection, phase sequence relays.
MANAGEMENT AND CONTROL
The TX110 control unit manages the chiller's operation, providing warnings including high/low temperature alarms and a general serious fault alarm, with the display indicating if this refers to the refrigeration or fluid power circuit. An on-off contact allows the machine to be switched on remotely. Control disconnect switch for switching on the machine.
PAINT/COATING
Standard colour: RAL 7035 textured.
MAIN ACCESSORIES
HR - Fluid heating element
LTA - Operation at low ambient temperatures
FP - Polyurethane air filter
RU - Castors
TD - Differential fluid temperature management (two sensors)
BGC - Hot gas bypass for +/- 1 K temperature precision
- Non-standard paint/coating
- Satin AISI 304 stainless steel framework
STRUCTURE
In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels
COMPRESSOR
Hermetic reciprocating compressor, cooled by the refrigerant, complete with thermal cut-out.
REFRIGERATION CIRCUIT
Complete with charging port, drier filter, thermostatic valve, high- and low-pressure safety pressure switch, R134a refrigerant.
EVAPORATOR
Tube evaporator with mantle, steel heads and copper heat exchanger tubes, with anti-freezing protection.
AIR CONDENSER
Finned high-efficiency copper tube condensing coil, complete with safety grille.
