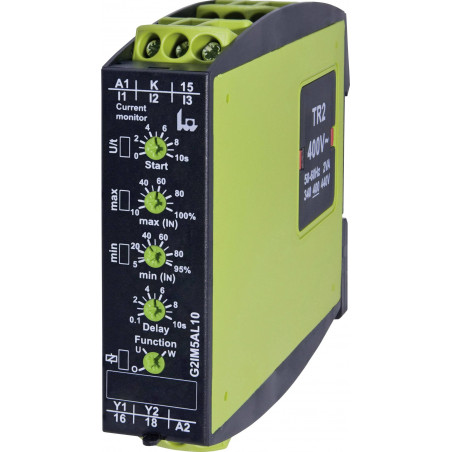

G2IM5AL10 - Relé de monitoreo de corriente
  • G2IM5AL10 - Relé de monitoreo de corriente

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: TELE Haase

G2IM5AL10 - Relé de monitoreo de corriente

  • G2IM5AL10
  • Valor nominal 0,02/1/5A AC/DC
  • Salida 1 x przełączalne
  • Numero de fases jednofazowe
  • fuente de alimentación moduł TR 12-400V AC

G2IM5AL10 - Current monitoring relay

G2IM5AL10 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of underloads and overcurrents in the monitored circuit. Three measuring ranges (20mA-1A-5A). The user can choose from 3 functions (in the variant with or without a latch) and one relay output. The G2IM5AL10 was designed with power distribution systems and control cabinets in mind. The simplicity of operation by means of adjusters placed on the front panel, compact size and power supply from the measuring circuit make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.

Menos
Lee mas

Envíe una consulta

¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?

Contacta con nosotras
SOLICITA EL PRODUCTO close
Gracias por enviar tu mensaje. Responderemos lo antes posible.
SOLICITA EL PRODUCTO close
Vistazo
enviar una consulta

Añadir a la lista de deseos

Usted debe estar conectado

  • Valor nominal 0,02/1/5A AC/DC
  • Salida 1 x przełączalne
  • Numero de fases jednofazowe
  • fuente de alimentación moduł TR 12-400V AC

G2IM5AL10 - Current monitoring relay

G2IM5AL10 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of underloads and overcurrents in the monitored circuit. Three measuring ranges (20mA-1A-5A). The user can choose from 3 functions (in the variant with or without a latch) and one relay output. The G2IM5AL10 was designed with power distribution systems and control cabinets in mind. The simplicity of operation by means of adjusters placed on the front panel, compact size and power supply from the measuring circuit make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.
