Fabricante: Rolec

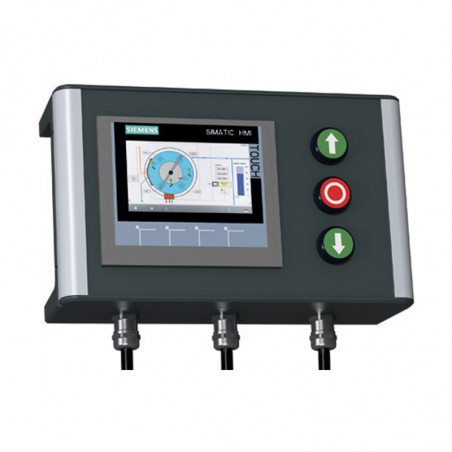

AluDOOR - Caja de aluminio con puerta IP66/IP67/IP69K

The new generation of enclosure.


AluDOOR enclosures are a further development of the unique series aluCASE. This enclosure has an unmistakable progressive design. They are the modern, contemporary »packaging« for innovative industrial electronics.

The integration of true hinges without additional expenditure has been implemented successfully in the new series. After the »mounting« of the lid and the fixation with the securing screws, they turn into »compact cabinets« with stainless steel screws and stainless steel threaded bushings. Even under extreme operating conditions, this arrangement ensures an absolutely safe and permanent closure technology.

AluDOOR enclosures are available either with recesses in the lid for the installation of membrane keypads (ADF) or with a flat lid (ADO).

Finally, the installation level of the enclosures is covered by design covers made of aluminium coated silver matt, providing an unparalleled design. All enclosures have domes in bottom sections and lids for the secure fastening of installations.



Technical details

Enclosure sizes 10 - with 2 lid variants: ADF = Series with recess in the lid and ADO = Series with flat lid
Further information Integrated hinge function on side D with 2 securing screws (A2, self-forming)
Captive lid secured with two screws
Fastening with closed enclosure
Clip-on design covers, coated silver matt
Opening angle of the lid max. 100°
Enclosure Die cast aluminium alloy
EN AC-44300 DIN EN 1706
(GD Al Si 12/DIN 1725)
1° mould slope for casting ejection > Internal circumference dimensions decrease by 1° towards enclosure base
Fastening Separate screw channels
Internal mountings Fastening domes with M5 thread on the enclosure bottom and in the lid
Ingress protection IP 66, 67 / EN 60529, IP 69K / ISO 20563
Gasket Foamed, polyurethane (PUR)
Optional: Silicone seal
Optional: EMC gasket
Surface Powder coating, RAL 7016
Design covers, silver matt powder coating
Optional: Special colours
Optional: Corrosion protection
Lid screws Stainless steel 1.4567, M5 with TX25, captive
Lid fastening thread Casting sleeves, stainless steel A2
Hinge Securing screws M5 self-forming for hinge attachment


Dimensions

Product name Part No. Lenght (L) x Width (W) x Height (H)
aluDOOR ADF 090 133.090.000 120x90x70
aluDOOR ADF 092 133.092.000 160x90x70
aluDOOR ADF 110 133.110.000 140x110x80
aluDOOR ADF 112 133.112.000 200x110x80
aluDOOR ADF 130 133.130.000 160x130x80
aluDOOR ADF 132 133.132.000 220x130x80
aluDOOR ADF 150 133.150.000 180x150x90
aluDOOR ADF 152 133.152.000 260x150x90
aluDOOR ADF 170 133.170.000 200x170x90
aluDOOR ADF 172 133.1720.000 280x170x90
