>>High air output
>>Long service life
>>Ball bearing fans
>>Ready for connection
>>Optical function indicator

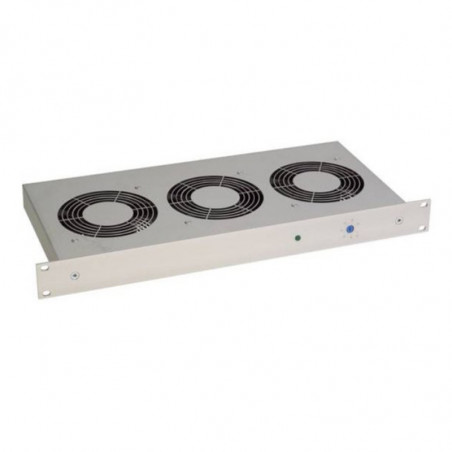

Compact high performance fan tray for enforced circulation of air in switch and server enclosures and for concerted cooling of 19" component groups. Natural convection is improved and the formation of localised hot pockets is avoided. Also available with integrated thermostat (see photo).
Axial fans, ball bearing | service life 50,000h at +25°C (+77°F), 65% RH |
Material | front panel aluminium, bright anodised casing steel sheet, electrogalvanized |
Storage temperature | - 45°C - +70°C |
Material | front panel aluminium, bright anodised casing steel sheet, electrogalvanized |
Connection | appliance power inlet on rear of casing, plug included |
Optical indicator | integrated in front panel |
Protection type/Protection class | IP 20 / I |
Approvals: | UL File No. E234324 |
Use in 19" enclosures: We recommend using the fan tray without integrated thermostat in combination with our dual thermostat (ZR 011 Art. No. 01176.0-00) for regulating temperature in electronic enclosures and for protection against over-heating due to possible fan failure.
The dual thermostat regulates the operation of the fan tray and – when connected to a signal device – also triggers an early warning if the enclosure interior temperature rises above a set limit. When using a fan tray with integrated thermostat, the use of an additional thermostat (KTS 011 Art. No. 01147.9-00) provides the extra safety of activating a signal device.
Art. No | Thermostat | No. of fans | Operating voltage | Power free flow | Power consumption |
Average noise level (DIN EN ISO 4871) |
Speed (rpm) | Pressure | Weight (approx.) |
---|---|---|---|---|---|---|---|---|---|
01930.0-00 |
without | 3 | AC230V, 50 Hz | 45W | 486 m³/h | 55 dB(A) | 2600min-1 (50 Hz) | 74 Pa | 3,00 kg |
01930.1-00 |
0 do 60 °C | 3 | AC230V, 50 Hz | 45W | 486 m³/h | 55 dB(A) | 2600min-1 (50 Hz) | 74 Pa | 3,40 kg |
01940.0-00 |
without | 6 | AC230V, 50 Hz | 90W | 972 m³/h | 57 dB(A) | 2600min-1 (50 Hz) | 74 Pa | 5,30 kg |
01940.1-00 |
0 do 60 °C | 6 | AC230V, 50 Hz | 90W | 972 m³/h | 57 dB(A) | 2600min-1 (50 Hz) | 74 Pa | 5,70 kg |
01950.0-00 |
without | 9 | AC230V, 50 Hz | 135W | 1458 m³/h | 58 dB(A) | 2600min-1 (50 Hz) | 74 Pa | 7,80 kg |
01950.1-00 |
0 do 60 °C | 9 | AC230V, 50 Hz | 135W | 1458 m³/h | 58 dB(A) | 2600min-1 (50 Hz) | 74 Pa | 7,90 kg |
01931.0-00 |
without | 3 | AC120V, 60 Hz | 45W | 576 m³/h | 55 dB(A) | 2900min-1 (60 Hz) | 88 Pa | 3,00 kg |
01931.1-00 |
0 do 60 °C | 3 | AC120V, 60 Hz | 45W | 576 m³/h | 55 dB(A) | 2900min-1 (60 Hz) | 88 Pa | 3,40 kg |
01941.0-00 |
without | 6 | AC120V, 60 Hz | 90W | 1152 m³/h | 57 dB(A) | 2900 min-1 (60 Hz) | 88 Pa | 5,30 kg |
01941.1-00 |
0 do 60 °C | 6 | AC120V, 60 Hz | 90W | 1152 m³/h | 57 dB(A) | 2900 min-1 (60 Hz) | 88 Pa | 5,70 kg |
01951.0-00 |
without | 9 | AC120V, 60 Hz | 135W | 1728m³/h | 58 dB(A) | 2900 min-1 (60 Hz) | 88 Pa | 7,80 kg |
01951.1-00 |
0 do 60 °C | 9 | AC120V, 60 Hz | 135W | 1728m³/h | 58 dB(A) | 2900 min-1 (60 Hz) | 88 Pa | 7,90 kg |
