Thermostats

Thermostats for control cabinets – precise temperature control for automation systems
The "Thermostats" category includes devices for stabilizing thermal conditions in electrical and control cabinets. They allow controlling heaters, fans, or air conditioners, preventing...

Thermostats for control cabinets – precise temperature control for automation systems
The...

Read more
Show filters
Hide filtersFiltrationShow filters X
Manufacturers
more... less
Dimensions
more... less
Supply voltage
more... less
Maximum current
more... less
Setting range
more... less
Accuracy
more... less
Protection rating
more... less
Changeover contact
more... less
Weight
more... less
Working temperature
more... less
Filter
Download Products List
Information close
Products that are marked "On Order" in the "Available Quantity" column are usually not in stock. Such products are available for purchase, however, due to their limited customer base, they usually have higher minimum quantities. DACPOL offers products that are not in stock for the following reasons: DACPOL currently has a large number of electronic components in stock and adds new products every day, however, tens of thousands of additional components and their various variants are available from our suppliers. Even though it is unreasonable to have all these products in stock due to the limited sales, we believe that it is in the best interest of our customers to make them available. Our goal is to inform customers about the maximum number of products available and enable them to make decisions based on specifications, prices, availability, required minimums and our technical advice. Please note that selecting the "In Stock" checkbox may limit the display to only products available for delivery straight from the shelf.
PDF Image
Manufacturer
descasc
Product name
descasc
 View the product No. Manufacturer
Quantity available
descasc
Dimensions
descasc
Supply voltage
descasc
Maximum current
descasc
Setting range
descasc
Accuracy
descasc
Protection rating
descasc
Changeover contact
descasc
Weight
descasc
Working temperature
descasc
picture_as_pdf DCT 010 - Electronic... STEGO DCT 010 - Electronic Thermostat - 01011.0-42 SEE IT 01011.0-42 On Order 93 x 53 x 44 mm 20 V - 56 V DC -- 0 °C - 60 °C -- IP20 MOSFET 120 g -40 °C - 60 °C
picture_as_pdf ZR 011 - Double Thermostat... STEGO ZR 011 - Double Thermostat - 01176.0-00 SEE IT 01176.0-00 On Order 67 x 50 x 46 mm -- -- 0 °C - 60 °C -- IP20 Kontakt sprężynowy 90 g -45 °C - 80 °C

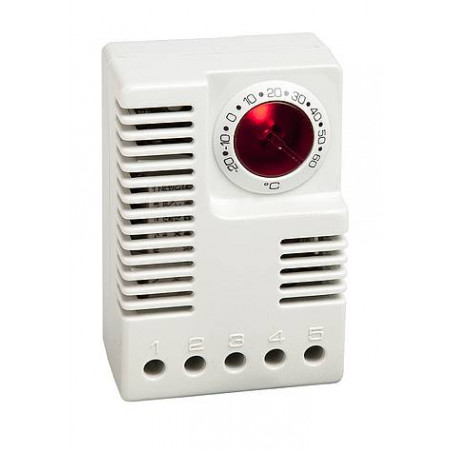

picture_as_pdf ETR 011 - Electronic... STEGO ETR 011 - Electronic Thermostat - 01131.9-00 SEE IT 01131.9-00 On Order 64,5 x 42 x 38 mm 120 V AC -- -4 °F - 140 °F -- IP20 Przekaźnik 70 g -40 °C - 85 °C
picture_as_pdf ETR 011 - Electronic... STEGO ETR 011 - Electronic Thermostat - 01131.0-00 SEE IT 01131.0-00 On Order 64,5 x 42 x 38 mm 230 V AC -- -20 °C - 60 °C -- IP20 Przekaźnik 70 g -40 °C - 85 °C
picture_as_pdf STS 011 - Contact closing... STEGO STS 011 - Contact closing Thermostat - 01116.9-00 SEE IT 01116.9-00 On Order 70 x 33 x 42 mm -- -- 32 °F - 140 °F -- IP20 Kontakt sprężynowy 50 g -45 °C - 80 °C
picture_as_pdf REX 011 - Explosion-proof... STEGO REX 011 - Explosion-proof Thermostat - 01185.0-01 SEE IT 01185.0-01 On Order 95 x 30 x 45 mm -- -- -- -- IP66 Kontakt sprężynowy 300 g -60 °C - 60 °C
picture_as_pdf ET 011 - Electronic... STEGO ET 011 - Electronic Thermostat - 01190.0-01 SEE IT 01190.0-01 On Order 67 x 50 x 46 mm 24 V DC -- 32 °F - 140 °F -- IP20 -- 80 g -40 °C - 60 °C
picture_as_pdf ET 011 - Electronic... STEGO ET 011 - Electronic Thermostat - 01190.0-00 SEE IT 01190.0-00 On Order 67 x 50 x 46 mm 24 V DC -- 0 °C - 60 °C -- IP20 -- 80 g -40 °C - 60 °C
picture_as_pdf ZR 011 - Double Thermostat... STEGO ZR 011 - Double Thermostat - 01175.0-00 SEE IT 01175.0-00 On Order 67 x 50 x 46 mm -- -- -10 °C - 50 °C -- IP20 Kontakt sprężynowy 90 g -45 °C - 80 °C
picture_as_pdf FTO 011 - Preset contact... STEGO FTO 011 - Preset contact opening Thermostat - 01160.0-00 SEE IT 01160.0-00 On Order 47 x 33 x 33 mm -- -- -- -- IP20 Kontakt sprężynowy 30 g -40 °C - 80 °C
picture_as_pdf FTO 011 - Preset contact... STEGO FTO 011 - Preset contact opening Thermostat - 01160.0-01 SEE IT 01160.0-01 On Order 47 x 33 x 33 mm -- -- -- -- IP20 Kontakt sprężynowy 30 g -40 °C - 80 °C
picture_as_pdf FTS 011 - Preset Thermostat... STEGO FTS 011 - Preset Thermostat closing contact - 01161.0-02 SEE IT 01161.0-02 On Order 47 x 33 x 33 mm -- -- -- -- IP20 Kontakt sprężynowy 30 g -40 °C - 80 °C
picture_as_pdf FZK 011 - Mechanical... STEGO FZK 011 - Mechanical Thermostat - 01170.9-00 SEE IT 01170.9-00 On Order 67 x 50 x 38 mm 120 V AC -- 40 °F - 140 °F -- IP20 Kontakt sprężynowy 100 g -45 °C - 65 °C
picture_as_pdf FTS 011 - Preset Thermostat... STEGO FTS 011 - Preset Thermostat closing contact - 01161.0-00 SEE IT 01161.0-00 On Order 47 x 33 x 33 mm -- -- -- -- IP20 Kontakt sprężynowy 30 g -40 °C - 80 °C
picture_as_pdf REX 011 - Explosion-proof... STEGO REX 011 - Explosion-proof Thermostat - 01185.1-00 SEE IT 01185.1-00 On Order 95 x 30 x 45 mm -- -- -- -- IP66 Kontakt sprężynowy 300 g -60 °C - 60 °C
picture_as_pdf DCT 010 - Electronic... STEGO DCT 010 - Electronic Thermostat - 01011.0-22 SEE IT 01011.0-22 On Order 93 x 53 x 44 mm 20 V - 56 V DC -- 0 °C - 60 °C -- IP20 MOSFET 120 g -40 °C - 60 °C
picture_as_pdf DCT 010 - Electronic... STEGO DCT 010 - Electronic Thermostat - 01011.0-21 SEE IT 01011.0-21 On Order 93 x 53 x 44 mm 20 V - 56 V DC -- -10 °C - 50 °C -- IP20 MOSFET 120 g -40 °C - 50 °C
picture_as_pdf DCT 010 - Electronic... STEGO DCT 010 - Electronic Thermostat - 01011.0-41 SEE IT 01011.0-41 On Order 93 x 53 x 44 mm 20 V - 56 V DC -- -10 °C - 50 °C -- IP20 MOSFET 120 g -40 °C - 50 °C
picture_as_pdf FTD 011 - Thermostat set -... STEGO FTD 011 - Thermostat set - 01163.0-00 SEE IT 01163.0-00 On Order 47 x 63 x 33 mm -- -- -- -- IP20 Kontakt sprężynowy 40 g -40 °C - 80 °C
picture_as_pdf FTS 011 - Preset Thermostat... STEGO FTS 011 - Preset Thermostat closing contact - 01161.0-01 SEE IT 01161.0-01 On Order 47 x 33 x 33 mm -- -- -- -- IP20 Kontakt sprężynowy 30 g -40 °C - 80 °C
picture_as_pdf REX 011 - Explosion-proof... STEGO REX 011 - Explosion-proof Thermostat - 01185.1-01 SEE IT 01185.1-01 On Order 95 x 30 x 45 mm -- -- -- -- IP66 Kontakt sprężynowy 300 g -60 °C - 60 °C
picture_as_pdf FZK 011 - Mechanical... STEGO FZK 011 - Mechanical Thermostat - 01170.9-01 SEE IT 01170.9-01 On Order 67 x 50 x 38 mm 120 V AC -- 5 °C - 60 °C -- IP20 Kontakt sprężynowy 100 g -45 °C - 65 °C
picture_as_pdf STO 011 - Contact opening Thermostat - 01115.9-00 STEGO STO 011 - Contact opening Thermostat - 01115.9-00 SEE IT 01115.9-00 On Order 70 x 33 x 42 mm -- -- 32 °F - 140 °F -- IP20 Kontakt sprężynowy 50 g -45 °C - 80 °C
picture_as_pdf FTD 011 - Thermostat set -... STEGO FTD 011 - Thermostat set - 01163.0-02 SEE IT 01163.0-02 On Order 47 x 63 x 33 mm -- -- -- -- IP20 Kontakt sprężynowy 40 g -40 °C - 80 °C
Results per page:
Back to top

Thermostats for control cabinets – precise temperature control for automation systems
The "Thermostats" category includes devices for stabilizing thermal conditions in electrical and control cabinets. They allow controlling heaters, fans, or air conditioners, preventing overheating, moisture condensation, and electronics failures.

Why is choosing the right thermostat important?
Electronics in control cabinets require stable thermal conditions. Excessive temperature or humidity can cause malfunctions, corrosion, and reduced device lifespan. Thermostats automatically activate heating or cooling according to the set threshold, maintaining an optimal working environment.

Applications of thermostats:

  • Automation cabinets and industrial switchboards
  • Power installations and technical infrastructure
  • Production lines and CNC machines
  • IT and telecommunications enclosures
  • HVAC systems in building automation

Choosing a thermostat – key parameters:

  • Operating temperature range (e.g., –40 °C to +60 °C)
  • Operating type (heating, cooling, dual-circuit)
  • Mounting (DIN rail, panel, enclosure mounting)
  • IP protection rating
  • Compatibility with devices inside the cabinet
  • Additional features: hysteresis, delay, alarm, communication
