GSA (F) - Transformadores de corriente interior y sobrecarga en la carcasa de resina

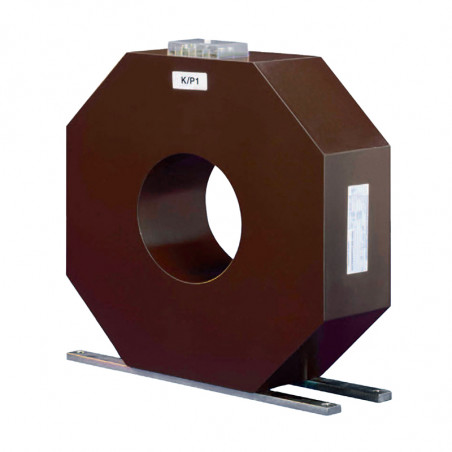

GSA (F) Cast Resin Current Transformers

GSA cast resin current transformers can be used for a variety of measuring, revenue metering (billing) and protection tasks. If the busbar systems or medium voltage cables are sufficiently insulated, these current transformers can be used for insulation levels higher than UM= 0,72kV (Highest voltage for equipment Um). The ring-type current transformer for outdoor use is also available on request (GSAF)



The current transformers are made of toroidal, soft magnetic, highly permeable tape-wound cores. The cores being uniformly wound with copper wire. For larger current strengths the cores come with stabilising windings to counteract the influence of external fields. Depending on the customer requirements each housing can accommodate up to five cores.

The output terminals are equiped with M5 screws. Protection against accidental contact is provided by a transparent polycarbonate cap. The modular mould system of the GSA permits almost any combination of housing and window sizes. To guarantee the mechanical and electrical resistance of the transformers they are encapsulated in a cast-resin housing with polyurethane. The GSA ring-type current transformers are equiped with two base plates as standard that allow them to be mounted in any position. They require no maintenance. In addition, for the outdoor transformers the output terminals are covered with an aluminium terminal box protected to IP54. Wire entry is via a PG16 threaded conduit in the terminal box.

When the current transformers need to be installed in locations with heavy vibration (for example, generator terminal boxes) the secondary terminals and the two base plates are reinforced in the resine housing (GSAG).

During the final inspection at ELEQ the current transformers are always subjected to a routine test in accordance with the relevant national and international standards.

Caution: if current transformers are operated open-circuited on the secondary side, extremely high voltages
can be generated with resultant damage to equipment and personnel!

General technical data:

Rated primary current 20.….10000A
Rated secondary current 1A, 5A
Rated frequency 50Hz, 60Hz
Rated burden according to customers requirement
Accuracy class according to customers requirement
Rated insulation level 0,72/3/-kV(1,2/6/-kV on request)
Rated short-time thermal current Minimum 100 x IN
Standard VDE, IEC, BC, ANSI itp.

Dimensions GSA100, 110 and 120
Type b1 b2 h h1 dmax. sizes

GSA 100/…

 60 100 122 62 50 A-C+

GSA 110/…

 60 110 122 62 60 A-C

GSA 120/…

 60 120 137 62 65 A-D
Possible sizes
  x y z
A 60 75 90
B 90 105 120
C 120 135 150
* 100 115 130


Dimensions remaining GSA’s

 Possible sizes
Type b1 b2 b3 h h1 h2 dmax. sizes

GSA 135/…

 130 135 150 150 75 10 90 A-E

GSA 150/…

 130 150 150 170 85 10 90 A-D

GSA 170/…

 150 170 170 185 92,5 10 110 A-E

GSA 200/…

 180 200 200 235 117,5 10 140 A-G

GSA 250/…

 230 250 250 290 145 10 150 B-G

GSA 300/…

 280 300 300 340 170 10 210 B-G

GSA 350/…

 330 350 350 390 195 10 250 B-G

GSA 400/…

 370 400 400 400 200 10 290 C-G

GSA 500/…

 440 500 500 500 250 15 350 E-G
  x y
A 60 30
B 90 60
C 120 90
D 150 120
E 200 170
F 250 220
G 300 270
Small deviations in dimension and construction possible
