Celda LiFePO4 3,2V 280Ah
  • Celda LiFePO4 3,2V 280Ah

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

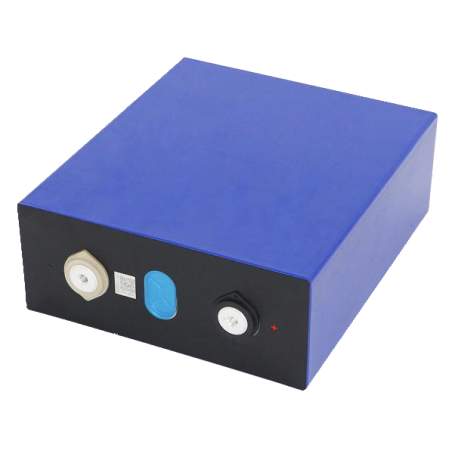

Celda LiFePO4 3,2V 280Ah

  • LF280K

Features

  • For Energy Storage System, EV, UPS
  • Excellent performance
  • High stability
  • Long life time



Nominal Capacity 280Ah
Nominal Voltage 3.2 V
Internal Resistance ≤0.25mΩ
Charging (CC-CV) Continuous Charging Current 1C
Maximum Charging Current 3C
Charging Upper Limit Voltage 3.65V
Discharging Continuous Discharging Current 1C
Maximum Discharging Current 3C
Discharging Cut-off Voltage 2.5V
Recommended SOC Usage Windom SOC: 10%~90%
Operation
Thermal Ambient		 Charging 0°C ~ 55°C
Discharging -20°C ~ 55°C
Storage
Thermal Ambient		 Short-term (within 1 month) -20°C ~ 45°C
Long term (within 1 year) 0°C ~ 35°C
Storage Humidity < 70%
Battery Weight 5.22±0.2kg
Shell Material Aluminum
Cell Dimensions 204.8*173.6*72mm



LF280K LiFePO4 CELL

Item Parameter Size
L Width 173.6±0.3mm
W Thickness 71.5±0.5mm
H Height (total) 204.8±0.5mm
H1 Height (subject) 200.0±0.5mm
D Tabs Distance 90.0±0.3mm
