Módulo de celdas NMC 22,2V 102Ah

  • TWS-6S1P-102-NMC

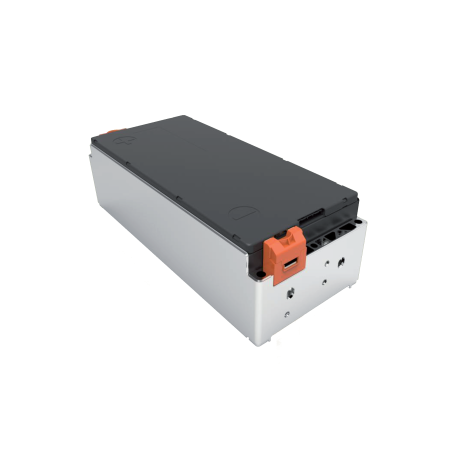

TWS-6S1P-102-NCM – 22.2 V 102 AH LITHIUM BATTERY MODULE

TWS-6S1P-102-NMC is a compact standard cell-stack VDA module with built-in low leakage & intrinsic safety which target for e-Mobility (EV/MH/AGV/eForklift) & ESS applications.

Main features

  • No memory effect
  • Following protections are needed externally to ensure normal & safe operations :
    • Over current
    • Over/under voltage
    • Over/under temperature
    • Short circuit
  • Cell balancing is recommended
  • Flame retardant material
  • Interface:
    • B+, B-
    • Cell voltage sensing
    • Temperature sensing (NTC)

Specifications

Configuration 6S1P
Nominal capacity 102 Ah @ 0.3 C
Nominal voltage 22.2 V @ 0.3 C
Chargecut-offvoltage 25.8 V
Dischargecut-offvoltage 16.8 V
Energy 2,264 Wh
Moduleweight 11.3 ±0.2 kg
Module size L: 355 ±2mm
W: 152 ±2mm
H: 108 ±2mm
Energy density 200 Wh/kg
389 Wh/L
Chargecurrent Continuous: 100A
Peak: 300A @ 10s
Dischargecurrent Continuous: 100A
Peak: 400A @ 10s
Battery cell NMC, 102 Ah, prismatic

Common specifications

Charge temperature -20°C ~ 55°C
Discharge temperature -30°C ~ 55°C
Best storage temperature -10°C ~ 55°C
Dielectric strength 2,700 VDC
Factory test of insulation resistance >100 MΩ
Voltage difference of sets ≤20 mV
