Interruptores RS y QS de dos y cuatro direcciones
  • Interruptores RS y QS de dos y cuatro direcciones
  • Interruptores RS y QS de dos y cuatro direcciones

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Sensata

Interruptores RS y QS de dos y cuatro direcciones

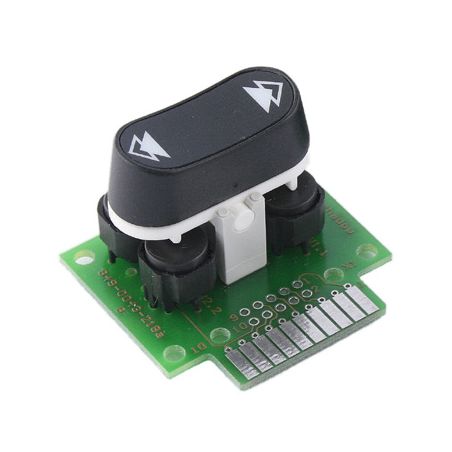

The Rocker Switch Modules RS1 and RS2 are designed for installation in front panels, multifunctional grips, or other switching units.

Features

  • RS1
    This module is a standard rocker switch
  • RS2
    RS2 offers the dual-switch function in both directions
  • QS1
    This module is a quadruple switch similar to a "mirror switch," composed of four K12 switches, designed for 4 directional switch functions (e.g., up, down, left, right)
  • QS2
    This module is similar to QS1 but features a dual-switch function, consisting of eight K12 switches for additional functions in each direction


Type RS1
RS2
QS1
QS2		 two K12 switches, one switching function per direction
four K12 switches, two switching functions per direction
four K12 switches, one switching function per direction
eight K12 switches, two switching functions per direction
Dimensions RS
QS		 43 x 40.7 x 27.55 mm
58.9 x 43 x 27.5 mm
Lifespan > 1 million cycles
Operating Temperature - 25°C to 85°C
Storage Temperature - 40°C to 85°C
IP Protection IP 65
