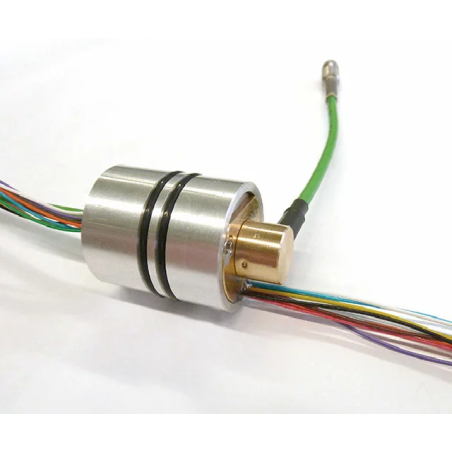

SLIP RING SC020-COAX

SLIP RING SC020-COAX

COAXIAL SLIP RING FOR HD-VIDEO SIGNALS

  • Outer diameter: max. 20 mm
  • HD-SDI based on the standard SMPTE 292M
  • 3G SDI based on the standard SMPTE 424M
  • 6G-SDI partly based on SMPTE ST 2081

APPLICATION EXAMPLES

  • Drain Inspection
  • Robotic
  • Support Arm Lamp
  • Surveillance Camera
  • Video System / CCTV

DATA

Number of rings: max. 2 rings for coax 75 Ω
Current per ring: ≤ 1,5 A per signal ring
Voltage: max. 48 VDC
Dielectric strength: 500 VAC
Insulation resistance: 500 MΩ at 500 VDC
Rotation speed: max. 10 rpm
Protection class: IP51
Operating temperature: -20 °C ... +80 °C
Rotor/Stator conn.: Enviroflex RG 179 length = 1500 mm
Housing material: Fibre-reinforced polycarbonate / Aluminium
