Fabricante: SOLIANI

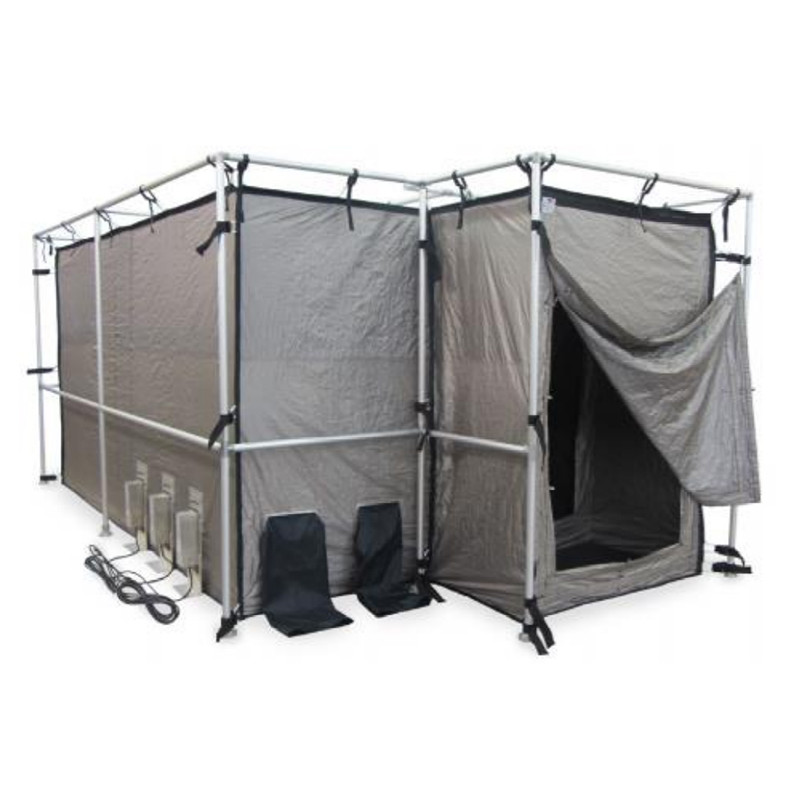

carpas EMC

Applications

  • Automotive
  • Measurement
  • Space and Lab
  • Military

Features

  • Semi-durable, easier to install, store and transport than metal wall chambers,
  • Lower cost and weight than permanently welded screened chamber,
  • 10: 1 weight ratio for welded screen room,
  • Removable "hardware cloth" panels,
  • Inner frame,
  • Attenuation over 70 dB in the range from 20 MHz to 18 GHz (IEEE ™ 299),
  • Made of conductive Ni fabric coated with acrylic,
  • Optional cleaning to ISO Class 7 (Class 10,000 -Fed. Std. 209).
Item name Reference number Description
Ventilation 60.10026 Round 10 cm diameter honeycomb ventilation screen.
Ventilation 60.10119 30cm x 30cm honeycomb ventilation screen.
Ventilation 60.10120 Portable air conditioning. Maximum power 10.700 BTU / h *
Power and signal EMC lines 70.10125 1000mB / s RJ45 port
Power and signal EMC lines 70.10002 10-100mB / s RJ45 port + RJ11 port
Power and signal EMC lines 70.10105 USB port
Power and signal EMC lines 70.10150 Fire alarm or general signal filter
Self-standing metal doors 96.00042 DOOR.850.1900.DT.EMC.
