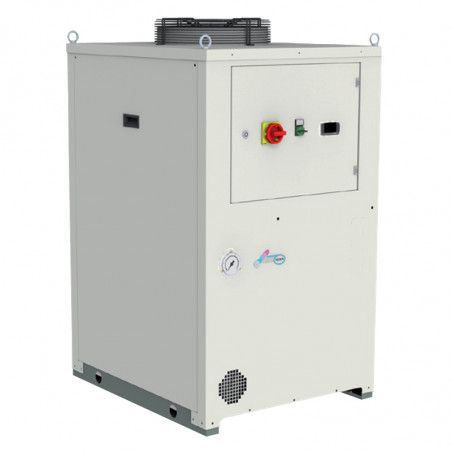

![Enfriadores de aceite TCO22-55 Enfriadores de aceite TCO22-55](https://www.dacpol.eu/7116-large_default/enfriadores-de-aceite-tco22-55.jpg)
![Enfriadores de aceite TCO22-55 Enfriadores de aceite TCO22-55](https://www.dacpol.eu/7116-large_default/enfriadores-de-aceite-tco22-55.jpg)
Debes estar logueado
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
Cooling power range | 2200 - 5300 W |
Casing | Steel, covered with polyester, colour RAL 7035, casing is removable. |
Compressor | Hermetically closed compressor with thermal protection. |
Cooling circuit | Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R134a. |
Evaporator | Plate heat exchanger with icing protection. |
Condenser | High efficient, spiral exchanger with ribs, protected with steel net. |
Axial fan | Protected thermally and with metal net. |
Hydraulic circuit | Consists of high pressure oil pump 20 bar, pressure control valve 5 bar. Manometer 0-25 bar. Oil container is mounted on the client request. |
Temperature control | Done by the microprocessor controller TX100, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off. |
Dimensions
Technical data
Type | TCO 22 | TCO 36 | TCO 44 | TCO 55 |
---|---|---|---|---|
Nominal cooling power [W] | 2200 | 3300 | 4400 | 5300 |
Ambient temperature range [°C] | +15 ÷ +45 | |||
Oil temperature range [°C] | +25 ÷ +40 | |||
Cooling liquid | R134a | |||
Power supply [V/Hz] | 400V 3ph / 50 | |||
Pump | ||||
Oil flow [l/min] | 10,0 | 10,0 | 20,0 | 20,0 |
Oil pressure [bar] | 20,0 | 20, 0 | 20, 0 | 20,0 |
Water terminal [mm] | 3/4" | |||
Weight [kg] | 132 | 134 | 136 | 138 |
