Fabricante: Ambrell

Potencia 30-45 kW, frecuencia 50-150 kHz

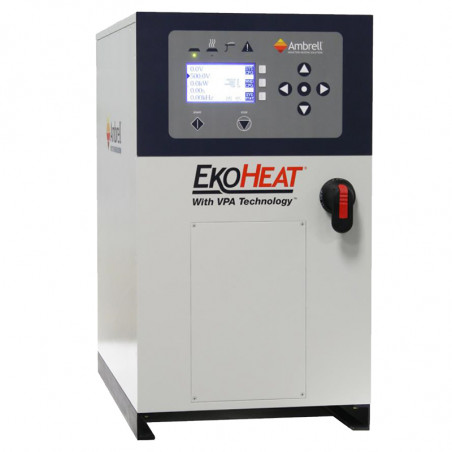

Generators for induction heating: power 30-45 kW, frequency 50-150 kHz

EKOHEAT induction heating systems for 50-150 kHz range provide reliable and repeatable solutions for high-speed heating of smaller parts where the part geometry or the coil size requires high frequency for efficient heating. Among many typical applications are heat treating of steels, shallow case depth hardening, and heating of steel, aluminum, copper or brass for brazing, shrink fitting, curing, forming and melting.

Model
Max power (kW)
Frequency (kHz)
Line voltage (V)
Input Max (kVA)
EKOHEAT 30/100
27
50-150
360 - 520, 3 ph
35
EKOHEAT 45/100
45
50-150
360 - 520, 3 ph
50

Generators for induction heating EKOHEAT 30kW - 100kHz
Max Power: 27 kW
Frequency: 50-150 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 35 kVA

Data Sheets:
EN | FR | DE | ES

Generators for induction heating EKOHEAT 45kW - 100kHz
Max Power: 40 kW
Frequency: 50-150 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 50 kVA

Data Sheets:
EN | FR | DE | ES
