Fabricante: Ambrell

Potencia 65-135 kW, frecuencia 50-150 kHz

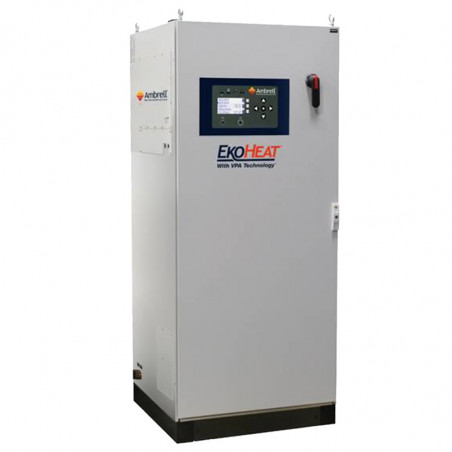

Generators for induction heating: power 65-135 kW, frequency 50-150 kHz

EKOHEAT induction heating systems for 50-150 kHz range provide reliable and repeatable solutions for high-speed heating of smaller parts where the part geometry or the coil size requires high frequency for efficient heating. Among many typical applications are heat treating of steels, shallow case depth hardening, and heating of steel, aluminum, copper or brass for brazing, shrink fitting, curing, forming and melting.

Model
Max power (kW)
Frequency (kHz)
Line Voltage (V)
Input Max (kVA)
EKOHEAT 65/100
60
50-150
360 - 520, 3 ph
72
EKOHEAT 90/100
80
50-150
360 - 520, 3 ph
100
EKOHEAT 135/100
129
50-150
360 - 520, 3 ph
150

Generators for induction heating EKOHEAT 65kW - 100kHz
Max Power: 60 kW
Frequency: 50-150 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 72 kVA

Data Sheets:
EN | FR | DE | ES

Generators for induction heating EKOHEAT 90kW - 100kHz
Max Power: 80 kW
Frequency: 50-150 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 100 kVA

Data Sheets:
EN | FR | DE | ES

Generators for induction heating EKOHEAT 135kW - 100kHz
Max Power: 129 kW
Frequency: 50-150 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 150 kVA

Data Sheets:
EN | FR | DE | ES
