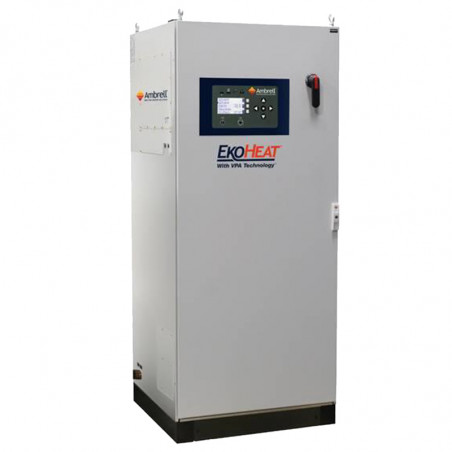

Potencia 75-200 kW, frecuencia 5-15 kHz
  • Potencia 75-200 kW, frecuencia 5-15 kHz
  • Potencia 75-200 kW, frecuencia 5-15 kHz

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Ambrell

Potencia 75-200 kW, frecuencia 5-15 kHz

Generators for induction heating: power 75-200 kW, frequency 5-15 kHz kHz

EKOHEAT induction heating systems for the 5 to 15 kHz frequency range provide reliable and repeatable solutions for heating with large coils or for heating larger parts. Typical applications include heating parts that require deeper heat penetration, heat treating steel, preheating for forging of steel, aluminum, copper or brass, and melting in crucibles.

New to the EKOHEAT range are the compact induction heating systems EKOHEAT Compact which, while maintaining their technical parameters, are 50% smaller in volume and footprint.

Model
Output Power (kW)
Frequency (kHz)
Power Supply (V)
Input Power (kVA)
EKOHEAT 75/10
75
5 - 15
360 - 520, 3 ph
87
EKOHEAT Compact 75/10
75
5 - 15
360 - 520, 3ph
87
EKOHEAT 100/10
100
5 - 15
360 - 520, 3 ph
116
EKOHEAT Compact 100/10
100
5 - 15
360 - 520, 3 ph
116
EKOHEAT 125/10
125
5 - 15
360 - 520, 3 ph
145
EKOHEAT Compact 125/10
125
5 - 15
360 - 520, 3 ph
145
EKOHEAT 150/10
150
5 - 15
360 - 520, 3 ph
174
EKOHEAT 200/10
200
5 - 15
360 - 520, 3 ph
232


Generators for induction heating EKOHEAT 75 kW - 10 kHz
Max Power: 75 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 87 kVA

Data Sheet:

Generators for induction heating EKOHEAT 100 kW - 10 kHz
Max Power: 100 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 116 kVA

Data Sheet:

Generators for induction heating EKOHEAT 125kW - 10kHz
Max Power: 125 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 145 kVA

Data Sheet:

Generators for induction heating EKOHEAT 150kW - 10kHz
Max Power: 150 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 174 kVA

Data Sheet:

Generators for induction heating EKOHEAT 200kW - 10kHz
Max Power: 200 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 232 kVA

Data Sheet:

Compact generators for induction heating EKOHEAT Compact 75/100/125 kW - 10kHz
Max Power: 75 / 100 / 125 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 87 / 116 / 145 kVA

Data Sheet:
