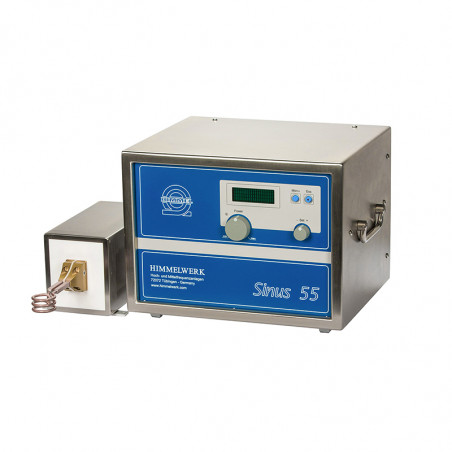

Induction Heating Generators - SINUS Series are the ideal solution for precise, repeatable heating processes. They simultaneously provide high efficiency, reliability and high cost effectiveness. The generators have microprocessor control and can be easily integrated into production processes.
Model
|
HF-Power [kW]
|
Frequency [kHz]
|
Mains Voltage [V]
|
Mains Power [kVA]
|
SINUS 51
|
5
|
500-1000
|
3x400
|
5,5
|
SINUS 52
|
5
|
1000-2000
|
3x400
|
5,5
|
SINUS 55
|
5
|
200-500
|
3x400
|
5,5
|
SINUS 62
|
6
|
50-200
|
3x400
|
6,5
|
SINUS 101
|
10
|
500-1000
|
3x400
|
11
|
SINUS 102
|
10
|
1000-2000
|
3x400
|
11
|
SINUS 105
|
10
|
200-500
|
3x400
|
11
|
SINUS 122
|
12
|
50-200
|
3x400
|
13
|
SINUS 251
|
25
|
500-1000
|
3x400
|
28
|
SINUS 252
|
25
|
1000-2000
|
3x400
|
28
|
For more technical information, please refer to the data sheet under the " Downloads " tab.
Brazing, soldering, hardening, shrinkage, pre-heating, annealing, smelting, drying, tempering, forging, sintering, sealing.
