Panel voltímetros EPV serie
  • Panel voltímetros EPV serie

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Sisel

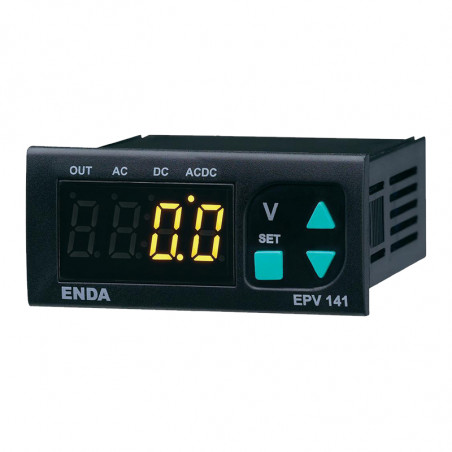

Panel voltímetros EPV serie

* 77 x 35mm sized.
* 3 digits display.
* Values between -100V and 100 V can be indicated with one
decimal number.
* Easy to use by front panel keypad.
* Multifunctional alarm output (NO+NC) for upper and lower
limits.
* CE marked according to Europan Norms.

Supply 230V AC +10%-20% 50/60HZ or 24AC ±10% 50/60Hz; 9..30VDC/7..24AC ±10%
Power consumption Max 5VA
Scale AC i RMS
DC		 0..500V
-500..500V
Sensitivity 0,1V (for input values between -100V and 100V) 1V (for input values that lower than -100V and higher than 100V )
Accuracy ± ± 1%
Input Range 500V...500V (Device damages 1250V peak and more voltage.)
Input Impedance 870kΩ
Frequency Range DC, 10..200Hz
Alarm Relay: 250V AC, 8A (for resistive load), NO+NC
Housing type Suitable for flush-panel mounting. (According to DIN 43 700)
Dimensions 35x77x71mm
Ambient/storage temperature 0..50°C/-25..70°C
Rated pollution degree According to EN 60529 Front panel : IP65 , Rear panel : IP20


Supply voltage Output Type
230V AC -
Relay		 EPV141-230
EPV141-R-230
9-30VDC / 7-24VAC -
Relay		 EPV141-SM
EPV141-R-SM


Dimensions

Panel cut-out
