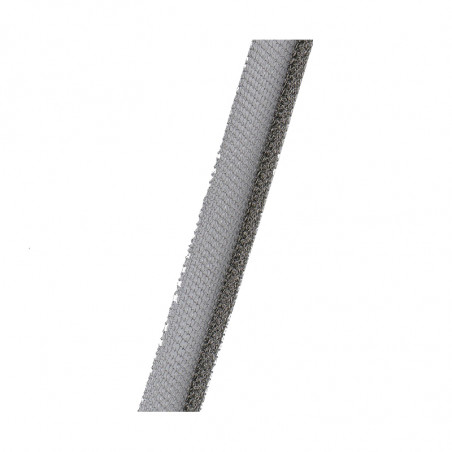

Juntas de metal hechas de malla trenzada.
  • Juntas de metal hechas de malla trenzada.

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: TEMAS

Juntas de metal hechas de malla trenzada.

Layers of metal mesh are formed into four standard cross-sectional profiles (round, rectangular, roundwith tail and double round with tail) and into a range of sizes to suite a large number of applications. Available in seven wire types: monel, tinned copper clad steel, stainless steel, beryllium copper, tinned copper, aluminium.
All metal gasketsoffer excellent EMI shielding performance, providing electrical continuity when compressed between two mating surfaces



Features:

  • no temperature limits
  • continuous or cut-to-length gaskets
  • pressure sensitive adhesive (as an option)

Available materials:

  • monel (MO)
  • stal platerowana z dodatkiem miedzi cynkowej (TC)
  • stal nierdzewna (SL)
  • stop miedziowo-berylowy (BC)
  • miedź cynkowana (TR)
  • aluminium (AL)



Round

Uszczelki metalowe z siatki plecionej

P/N Diameter
[mm]

T.016

 1.6

T.024

 2.4

T.032

 3.2

T.048

 4.8

T.064

 6.4

T.080

 8.0

T.095

 9.5

T.111

 11.1

T.127

 12.7

T.159

 15.9

T.191

 19.1

Rectangular

Uszczelki metalowe z siatki plecionej

P/N Height   (H)
[mm]		 Width (W)
[mm]

R.024.024

 2.4 2.4

R.024.048

 2.4 4.8

R.024.064

 2.4 6.4

R.032.032

 3.2 3.2

R.032.064

 3.2 6.4

R.032.080

 3.2 8.0

R.048.048

 4.8 4.8

R.048.080

 4.8 8.0

R.048.127

 4.8 12.7

R.064.064

 6.4 6.4

R.064.127

 6.4 12.7

R.080.127

 8.0 12.7

R.095.127

 9.5 12.7


P section

Uszczelki metalowe z siatki plecionej

P/N Height   (H) [mm] Width (W)
[mm]

P.032.095

 3.2 9.5

P.032.127

 3.2 12.7

P.032.159

 3.2 15.9

P.032.191

 3.2 19.1

P.048.127

 4.8 12.7

P.048.159

 4.8 15.9

P.048.191

 4.8 19.1

P.048.222

 4.8 22.2

P.080.159

 8.0 15.9

P.080.191

 8.0 19.1

P.080.222

 8.0 22.2

P.080.254

 8.0 25.4

P.095.320

 9.5 32.0

Double p section

Uszczelki metalowe z siatki plecionej

P/N Height   (H)
[mm]		 Width (W)
[mm]

B.032.095

 3.2 9.5

B.032.127

 3.2 12.7

B.032.159

 3.2 15.9

B.032.191

 3.2 19.1

B.048.159

 4.8 15.9

B.048.191

 4.8 19.1

B.048.222

 4.8 22.2

B.048.254

 4.8 25.4

B.080.191

 8.0 19.1

B.080.222

 8.0 22.2

B.080.254

 8.0 25.4

B.080.320

 8.0 32.0

B.095.320

 9.5 32.0


Other size, configurations or ready-to-mount finished gaskets (according to your drawing) available upon request

Uszczelki metalowe z siatki plecionej

This graph compares general performances in E-fieldand H-field screening of four gaskets made of different materials (monel, stainless steel, tinned copper and aluminium). Tests are performed on type T.064cross section and in accordance with MIL STD 285.

Monel

Material No. (DIN) 2.4360
Wire Diameter 0,11 mm
Test gasket T.064.MO

Shielding Effectiveness

Electrical
Frequency [Hz] Mode Screening [dB]
1 M E 124,5
10 M E 110
110 M P 105,5
400 M P 101
1 G P 86
10 G P 82,5
Magnetic
10 K H 48,5
100 K H 50,5
1M H 54

Tinned Copper Clad Steel

ASTM-B-520
Wire Diameter 0,11 mm
Test gasket T.064.TC

Shielding Effectiveness

Electrical
Frequency [Hz] Mode Screening  [dB]
1 M E 125,5
10 M E 110
110 M P 114,5
400 M P 99
1 G P 85,5
10 G P 99,5
Magnetic
10 K H 62
100 K H 62,5
1M H 61


Stainless Steel

AISI 304 , Materiał (DIN) 1.4301
Wire Diameter 0,11 mm
Test gasket T.064.SL

Shielding Effectiveness

Electrical
Frequency [Hz] Mode Screening  [dB]
1 M E 124,5
10 M E 110
110 M P 105,5
400 M P 101
1 G P 86
10 G P 82,5
Magnetic
10 K H 48,5
100 K H 50,5
1M H 54

Aluminium

Alloy 5056 , AMS-4182
Wire Diameter 0,13 mm
Test gasket T.064.AL

Shielding Effectiveness

Electrical
Frequency [Hz] Mode Screening  [dB]
1 M E 125,5
10 M E 110
110 M P 114,5
400 M P 99
1 G P 85,5
10 G P 99,5
Magnetic
10 K H 62
100 K H 62,5
1M H 61
