Serie Analizador de IM
  • Serie Analizador de IM

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: Chino

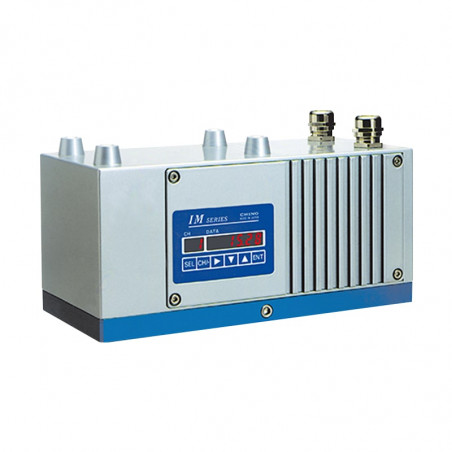

Serie Analizador de IM

The IM series is an on-line multi IR wavelength Mirror type analyzer utilizing the infrared absorption technology for measuring product constituent and/or thickness. Signal processing capabilities are built into the Compact All-In-One detector unit for easy installation and operation. A maximum of 99 calibration curves can be stored into the detector memory for numerous measurement applications. The detector can be used by itself or connected to a PC/plant control system, as both analog and digital outputs are provided. A remote setting display unit, connectable up to 9 detector units, can be used to setup various detector functions and also displays measured values.

Application:
• Measuring moisture of wood chip.
• Measuring the thickness of sheet or film.
• Measuring the organism, moisture and lipid of fodder.
• Measuring the organism, moisture and oil of potato chips.
• Measuring moisture of garbage (RDF moisture).
• Measuring the coating thickness on the painting sheet.
• Measuring moisture of powder.
• Measuring moisture in cleaning solution.
• Measuring moisture of clay.
• Measuring moisture of fiber.
• Measure [&] Control the coating thickness
of Laminate-sheet production line.
• Measure [&] Control the painting thickness.


Catalogue number

Features:
• Up to 10 wavelengths, capable of measuring 4 constituents such as; moisture, film-thickness, organism, and coating-thickness in real time simultaneously.
• Connectivity to multiple interfaces, RS485 (MODBUS), Ethernet (LAN)
• High-speed [&] High-repeatability (28ms)
• Multi-calculation function
• Self-diagnostic function, easy maintenance.
• Conforms to CE standards and IP-65

Catalogue number

MEASURING EXAMPLES
Object Range Accu.
General moisture (%)
Glass / pottery / cement
Potter's clay 0...12 >±0.3
Iron / metal
Coal 0...15 >±0.2
Mix raw material 0...10 >±0.2
Iron oxide 0...10 >±0.2
Foods
Starch 0...25 >±0.2
Bread-crumbs 0...20 >±0.2
Soybean 0...15 >±0.2
Milk powder 0...5 >±0.2
Sugar / salt 0...2 >±0.05
Flavouring 0...10 >±0.2
Tea 0...15 >±0.2
Chemicals
Catalyst 0...10 >±0.2
Medium 0...20 >±0.2
Detergent 0...15 >±0.2
Ink 0...5 >±0.2
Fertilizer 0...5 >±0.2
Rubber / fiber / etc.
Vinylon fiber 0...10 >±0.2
Acrylic fiber 0...10 >±0.2
Wood chip 0...10 >±0.2
Paper 0...10 >±0.1
Material Range Accu.
Wet paper 40...70 >±0.5
Raw bread crumbs 30...40 >±0.7
Clay 0...30 >±0.3
Silica sand 0...10 >±0.8
Bicarbonate 0...18 >±0.6
Micro moisture
ABS, PVC powder 0...1 >±0.8
Granular ferrite 0...0.5 >±0.8
Thickness [um]
Polyethylene PE 10...3000 >+0.2
Polypropylene PP >±0.2
Polyester PET >±0.2
Vinyl chloride PVC >±0.2
PVA >±0.2
EVA >±0.2
Polystyrene PS >+0.2
Polycarbonate >±0.2
Nylon PA >±0.2
Polyimide PI >±0.3
TAC film >±0.2
Coating (g/m2)
Coat-paper 10...1000
Tuck-paper, label
Adhesive WET/DRY
Resin on steel-board

SOFTWARE PACKAGE
Main Screen
Displays measured data, trend and alarm value. Displays 4 constituents on one screen. Save data into specified folder, enable to search or
read out the data.

GENERAL SPECIFICATIONS
INFRARED MULTI ANALYZER
• Measuring system: Infrared absorption type
• Measuring wavelength: Up to 10 wavelengths
• Measuring component: Up to 4 constituents
• Light source: Tungsten lamp
• Measuring distance: 200...400 mm (IRMA 1300:160...300 mm)
• Measuring diameter: 50 mm3 / 300 mm (IRMA 1300: 30 mm3/200 mm
• Analog output: 4 to 20mADC, ±0.2% of full scale
(Load resistance: less than 500Ω)
• Communications:: RS485 MODBUS
• Output renewal cycle: 28 ms
• Display [&] setup: Displays data [&] setup parameter Parameters are configurable by key.
• Computing:: 2 or 3-color ratio calculation
Multiple regression calculation
• No. of calibration curve: Up to 99 curves
• Calibration curve: Linear, quadratic, cubic [&] multiple regression line
• Calibration curve correction: Linear [&] quadratic co
• Smoothing (delay): 0...99 sec
• Calibration: By checking plate
• Detector No. setup: When multiple detector operation,detector No. is key configurable.
• Channel No. setup: Calibration curve No. is key configurable.
• Self-diagnostic: Outputs contact signal and communications when abnormal
conditions.
• Correction input: Compensate measured value by external 4 to 20mA DC
(sample temperature, etc.)
• External Di/o: Di(contact input) --- Perform either oneof preset, data-hold or real/smoothing
Do(contact output) --- Selects self-diagnostic(1b) or Hi/low alarm(1a)
• Working temperature: 0 to 50°C (Use dry air cooling if higher than
45°C. Outlet air temperature must be lower
than 30°C.)
• Power supply: 24V DC supplied from IR-WEP (IR-WEP power supply: 100-240VAC)
• Power consumption:: ok. 30 VA
• Connection: terminal
• Casing: Aluminum casting, drip-proof structure
(conforming to IEC529, IP65)
• Weight: Approx. 4.3kg
• Mounting:: Bolt suspension method with 4 pieces
of M8 bolts
• CE-standards: EMC directives EN61326+A

SETTING DISPLAY UNIT
•Input signal RS485, Up to 9 detectors connectable
• Analog output: 4 to 20mADC, 2 output* (Load resistance: less than 500Ω)
* When multiple detector operation, outputs for detector No. 1 [&] 2.
• Communications: RS232C, RS422 or RS485
• Output renewal cycle:: 28ms × detector number
Display: 1) Measured data, LED 5-digit
  2) Detector No., CH. No., Parameter setup
• Detector No. setup:: Detector No.1 to No.9 is key configurable.
• Calibration curve No. setup Calibration curve No. is key configurable.
• Smoothing time: T = 0,0...9,9 s, 10...99S
• Calibration:: Perform calibration by key operation or by external contact in use of checking plate
• Hold/preset: Hold or preset the display and output by key operation or external contact.
• Calibration curve correction: Online correction of calibration curve Linear or quadratic correction.
• External setup: Detector No., CH. No., Calibration,Hold or Preset.
• Alarm function:: Outputs contact signal (HCL) beyond
setting-range
• Self-diagnostic: Outputs contact signal(1b) when abnormal condition
With lamp display
• Power supply: 100...240VAC 50/60 Hz
• Power consumption: max. 15 VA
• Working ambient: 0...50 °C
• Casing: ABS
• Protection level IP65
• Mounting: Panel-mount type
• Weight:: Approx. 0.6kg

CE STANDARDS SPECIFICATIONS
• Analog output:: 1x4...20mA
• Load resistance: <500n
• Power supply:: 24VDC±10%
• Power consumption: About 10VA

FIBER UNIT
• Measuring distance and diameter: With lens --- φ25/25mm to φ40/100mm
  Without lens --- φ20/15mm to φ50/50mm
• Długość światłowodów: Standard 1.5m, Max.5m (Reflection type fiber)
  Standard 2m, Max.10m (Transmission type fiber)
• Fiber protection: Stainless steel flexible armour
• Minimum bending radius: r= 100 mm
• Working temperature: 0...150°C
• Purge air flow:: With lens --- Air purge disabled
  Without lens --- 5 to 20L/min
• Accessory:: Vertical mounting holder
  Flange holder

Dimensions [mm]:
Analyzer IRMA
Setting display unit IRGMEG2
 Power supply unit IR-WEP
Air purge hood IR-WEA
Output checking plate IR-WEB
Connecting cable IR-WERP
Reflection type fiber
Reflection type fiber (with lens)
IR-WCRE
Transmission type fiber
Output checking plate for
reflection type fiber IR-WCRB
Liquid cell IR-WCC
Air-cooling box IR-WEX
