Fabricante: Sammode

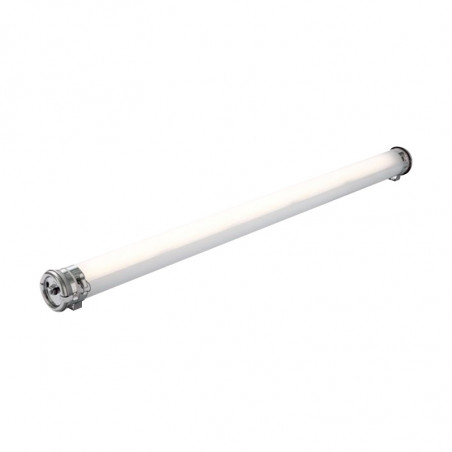

BURSEN 100

Bunsen 100

Technologia LED
Max. temp: 55oC
Light ouput: 2775 to 5550 lm
Control Gear: "Industry" rated



Key features
Plug[&]Play-installation by disconnectable Plug
Resists aggressive detergents
Very high resistance to vibrations
Very high resistance to corrosion
Long maintenance intervals
Durable and maintainable luminaire

Technical data

Light source

  • High efficiency LED modules (155 lm/W)
  • LED modules for high temperature
  • 50 000 h L80/B50 at max. operating temperature
  • Replaceable LED modules
  • CRI> 80

Optic

  • Light mixing chamber
  • Satin Diffuser to minimise glare

Heat management

  • Heatsink in aluminium

Control Gear

  • Electronic driver for high temperature (non-dimmable)
  • Resistance to voltage surge : 320 V AC, 48 h
  • Supports voltage peaks <4 kV

Power supply

  • 220 – 240V 50/60 Hz

Operating temperature

  • : -20oC do +55oC

Materials

  • Housing Polycarbonate with protective coextruded PMMA layer
  • End caps, fixing straps… Stainless Steel 304 L
  • Gaskets EPDM

Standards

  • Imperviousness IP66, IP68 and IP69K
  • Shock resistance IK10
  • Fire resistance 650 °C
  • Vibration resistance Meets the standard EN 60598-1 (tested according to CEI 60068-2-6)

Principal part numbers
Lumens Designation Part No. Cons (W) Opica T (K) L (mm)
Versions for new installations
3700 BUN100 14H830 POME PS3 SA BRS 3105 0050 33 3000 1307
BUN100 14H840 POME PS3 SA BRS 3105 0060 4000
5550 BUN100 16H830 POME PS3 SA BRS 3105 0090 50 3000 1850
BUN100 16H840 POME PS3 SA BRS 3105 0100 4000
Retrofit versions : Like-for-like replacement 1:1
Equivalent to 1 x 36 W T8
2775 BUN100 13H830 POME PS3 SA BRS 3105 0030 25 3000 1007
BUN100 13H840 POME PS3 SA BRS 3105 0040 4000
Equivalent to 1 x 58 W T8
4625 BUN100 15H830 POME PS3 SA BRS 3105 0070 43 3000 1607
BUN100 15H840 POME PS3 SA BRS 3105 0080 4000


Dimensions

Bunsen 100 wymiary
