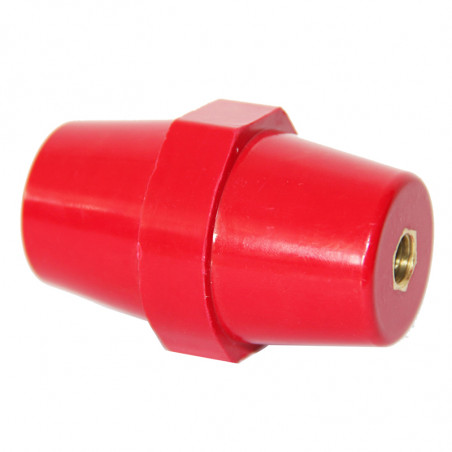

Aisladores de apoyo para gabinetes separables.
  • Aisladores de apoyo para gabinetes separables.

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: EFEN

Aisladores de apoyo para gabinetes separables.

Temperature resistance ISO 75/A > 200 °C.
Insulators(threads: female/female)

Marking A B C ØD E F Operation voltage
[kV]		 Max voltage
kV]		 Bending resistance
[kN]		 Stretching resistance
[kN]		 Twisting resistance
[Nm]
H25SW36M6/M6 25 M6 SW36 30 6 10 1 0 7,5 4 6 15
H25SW36M8/M8 M8 8 6,4 9,5 24,5
H25SW36M10/M10 M10 10 6,4 9,5 30
H30SW30M6/M6 30 M6 SW30 26 6 12 1/0 7,5 4 6 15
H30SW30M8/M8 M8 8 6,4 9,5 24,5
H30SW30M10/M10 MIO 10 6,4 9,5 30
H35SW32M6/M6 35 M6 SW32 29,8 8 13 1 23 4,5 6 15
H35SW32M8/M8 MX 10 6,9 10 50
H35SW32M10/M10 MIO 12 8 11 80
H40SW36M6/M6 40 Mfi SW36 3 8 15 1,5 ?0 4,5 6 15
H40SW36M8/M8 MX 10 X,5 11 50
H40SW36M10/M10 MIO 12 9 12 75
H45SW46M6/M6 45 Mfi SW46 38 8 17 1,5 23 5 6 15
H45SW46M8/M8 MX 10 9,5 14 50
H45SW46M10/M10 MIO 12 9,5 14 95
H50SW50M6/M6 50 Mfi SW50 42 8 19 2 37 5 6 15
H50SW50M8/M8 MX 10 5 13 50
H50SW50M10/M10 MIO 12 6 13 90
H50SW50M12/M12 Ml? 17 25 9,5 17 125
H60SW50M6/M6 60 M6 SW50 42 8 23,5 3 30 5,5 6 15
H60SW50M8/M8 M8 10 8 19 50
H60SW50M10/M10 M10 12 8 19 90
H60SW50M12/M12 M12 16 20 10 19 115
H60SW50M16/M16 M16 20 20 10 19 115
H70SW60M8/M8 70 M8 SW60 52 10 28 4 0 50 8 19 50
H70SW60M10/M10 M10 12 12 22 90
H70SW60M12/M12 M12 16 13 24 1X5
H70SW60M16/M16 M16 20 13 24 195
Insulators (threads: female/male)

Marking A B C ØD E F G Nominal voltage
[kV]		 Max voltage
[kV]		 Bending resistance
[kN]		 Stretching resistance
[kN]		 Twisting resistance
[Nm]
25 SW36 M6/M6-8 25 M6 SW36 30 6 10 8 1 7,5 4 5 10
25SW36M8/M8-10 M8 8 10 6,4 9,5 20
30 SW30 M6/M6 30 M6 SW30 26 6 12 8 1 10 4 5 10
30 SW30 MX/MX M8 8 10 6,4 9,5 20
30SW30M10/M10 M10 10 12 6,4 9,5 30
35 SW32M6/M6 35 M6 SW32 30 8   8 1   4,5 5 10
35 SW32MX/MX M8 10 13 10 6,9 9,5 22
35SW32M10/M10 M10 12   12 8 9,5 45
40 SW36 M6/M6 40 M6 SW36 32 8 15 8 1,5 15 4,5 5 10
40 SW36 M8/M8 M8 10 10 8,5 9,5 22
40SW36M10/M10 MIO 12 12 9 9,5 45
45 SW46 M6/M6 45 M6 SW46 38 8 17 8 1,5 15 4,5 5 10
45 SW46 M8/M8 M8 10 10 9,5 10 22
45SW46M10/M10 M10 12 12 9,5 13 45
50 SW50 M8/M8 50 M8 SW50 42 10 19 10 2 15 5 10 22
50SW50M10/M10 M10 12 12 5 13 45
50SW50M12/M12 Ml 2 17 17 6 17 115
60 SW50 M8/M8 60 M8 SW50 42 10 24 10 2 15 5,5 10 22
60SW50M10/M10 M10 12 12 8 13 45
60SW50M12/M12 M12 20 17 10 17 115
70 SW60 M8/M8 70 M8 SW60 52 10 28 10 2 15 8 10 22
70SW60M10/M10 M10 12 12 12 13 45
70SW60M12/M12 M12 20 17 13 17 115
