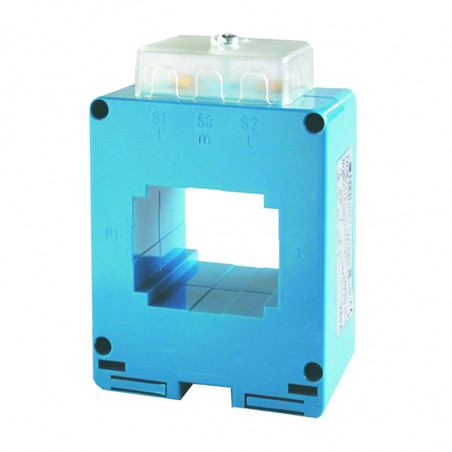

TRANSFORMA CORRIENTE TAC053 para cables Ø40 en un riel 51x32mm y 41x41mm
  • TRANSFORMA CORRIENTE TAC053 para cables Ø40 en un riel 51x32mm y 41x41mm

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: FRER

TRANSFORMA CORRIENTE TAC053 para cables Ø40 en un riel 51x32mm y 41x41mm

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1,2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <20W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
200/5 A 2 4

TAC053200X05
250/5 A 4 8

TAC053250X05
300/5 A 5 10

TAC053300X05
400/5 A 6 12

TAC053400X05
500/5 A 10 20

TAC053500X05
600/5 A 15 25

TAC053600X05
800/5 A 20 30

TAC053800X05
1000/5 A 30 40

TAC0531K0X05
1200/5 A 30 40

TAC0531K2X05
1500/5 A 30 40

TAC0531K5X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
200/1 A 2 4

TAC053200X01
250/1 A 4 8

TAC053250X01
300/1 A 5 10

TAC053300X01
400/1 A 6 12

TAC053400X01
500/1 A 10 20

TAC053500X01
600/1 A 15 25

TAC053600X01
800/1 A 20 30

TAC053800X01
1000/1 A 30 40

TAC0531K0X01
1200/1 A 30 40

TAC0531K2X01
1500/1 A 30 40

TAC0531K5X01
2000/1 A 30 40

TAC0532K0X01

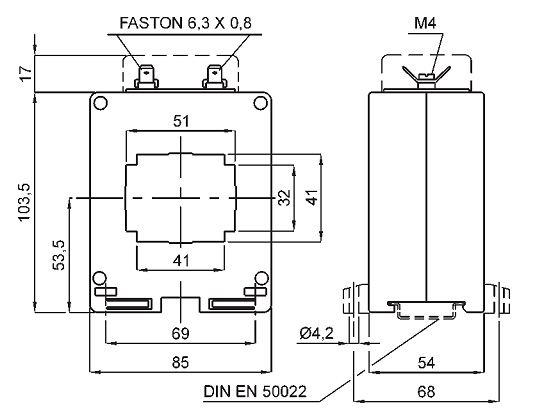

Dimensions

Przekładnik prądowy TAC053
