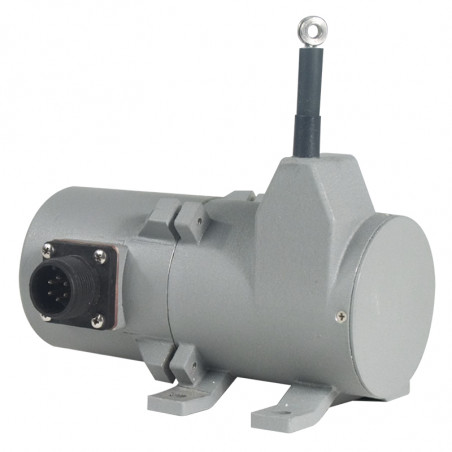

![Vinculación de transductores de distancia PT8000 Vinculación de transductores de distancia PT8000](https://www.dacpol.eu/7043-large_default/vinculacion-de-transductores-de-distancia-pt8000.jpg)
![Vinculación de transductores de distancia PT8000 Vinculación de transductores de distancia PT8000](https://www.dacpol.eu/7043-large_default/vinculacion-de-transductores-de-distancia-pt8000.jpg)
Debes estar logueado
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
technical data |
||||||||
Group | PT8101 | PT8150 | PT8232 | PT8420 | PT8510 | PT8CN | PT8DN | PT8600 |
---|---|---|---|---|---|---|---|---|
Output Signal Options | Potentiometer | encoder | RS 232 | current | voltage | Canabus J1939 | Device Net | moduł kablowy |
Technical data |
||||||||
Measurement range [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Accuracy | 0,25%...0,10% | 0,02%...0,04% | 0,25%...0,10% | 0,28%...0,15% | 0,25%...0,15% | 0,25%...0,10% | 0,25%...0,10% | 0,02%...%0,04% |
Repeatability | 0,02% | 0,02% | 0,02% | 0,05% | 0,05% | 0,02% | 0,02% | - |
Durability | 250k...2,5 mln | 5 mln | 250k...2,5 mln | 250k...2,5 mln | 250k...2,5 mln | 5 mln | 250k...2,5 mln | 5...10 mln |
Casing |
||||||||
Material | Aluminium Noble steel |
Aluminium Noble steel |
Aluminium Noble steel |
Aluminium Noble steel |
Aluminium Noble steel |
Aluminium Noble steel |
Aluminium Noble steel |
Aluminium Noble steel |
Protection level | IP67/68 | IP67 | IP67 | IP67/68 | IP67/68 | IP65/67 | IP67 | - |
Operation temperature | -40...90°C | -17...71°C | -40...90°C | -40...90°C | -40...90°C | -40...85°C | -40...85°C | -40...90°C |
Vibrations | Do 10g @ 2000 Hz max |
Do 10g @ 2000 Hz max |
Do 10g @ 2000 Hz max |
Do 10g @ 2000 Hz max |
Do 10g @ 2000 Hz max |
Do 10g @ 2000 Hz max |
Do 10g @ 2000 Hz max |
Do 10g @ 2000 Hz max |
Measurement cord |
||||||||
Noble steel covered with nylon. [inch] * | ø 0,034 | ø 0,034 | ø 0,034 | ø 0,034 | ø 0,034 | ø 0,034 | ø 0,034 | |
Noble steel | ø 0,047 | ø 0,047 | ø 0,047 | ø 0,047 | ø 0,047 | ø 0,047 | ø 0,047 | |
Thermoelastic plastic | ø 0,062 | ø 0,062 | ø 0,062 | ø 0,062 | ø 0,062 | ø 0,062 | ø 0,062 | |
Electrical connection |
||||||||
Tips for soldering | - | - | - | - | - | - | - | - |
Wires | - | - | - | - | - | - | - | - |
Cables | 7,5 m cable water proof |
7,5 m cable | 7,5 m cable | 7,5 m cable water proof |
7,5 m cable water proof |
- | - | - |
Plug | Metal plug/ plastic 6 pol.+socket |
Metal plug/ plastic 6/18 pol.+ socket |
Metal plug/ plastic 6 pol.+socket |
plastic plug 6 pol.+socket |
Metal plug/ plastic 6 pol.+socket |
Micro plug 5pol.+ + socket plug (also 5m cables) |
Micro plug 5pol.+ + socket plug (also 5m cables) |
Compatible with different type of encoders |
Properties | ||||||||
Integrated brush for cable. cable breaking system. | Integrated brush for cable. cable breaking system. | Integrated brush for cable. cable breaking system. | Integrated brush for cable. cable breaking system. EX execution | Integrated brush for cable. cable breaking system. | Integrated brush for cable. cable breaking system. | Zintegrowana szczotka do kabla; system hamowania kabla |
Zintegrowana szczotka do kabla; system hamowania kabla |
|
*) 1 inch= 25,4 mm |
