Fabricante: HotCold S.C.

Transmisores de concentración de CO2

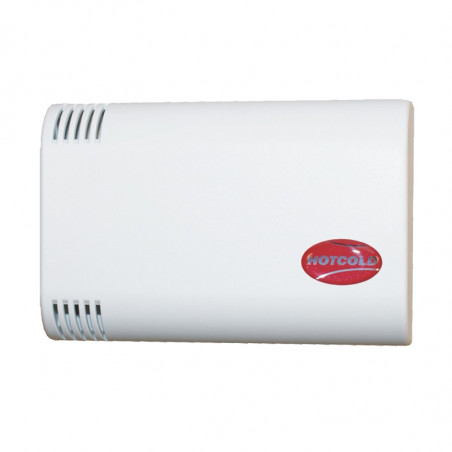

CO2 concentration transmitters

CO2 transmitter based on MHZ14 sensor, with RS-485 interface with built-in MODBUS RTU protocol, with analog output in 0...10V standard.

The transmitter is designed to measure CO2 concentration. Available casing versions for wall and duct mounting.

Technical data:
  • Analog output: 0...10V.
  • Range of CO2: 0...2000 ppm.
  • LED operation indication.
  • Serial interface RS-485 (reading of measurement values, configuration of working parameters), protocol MODBUS RTU.
  • Communication in HALF DUPLEX mode.
  • Hardware configurable address (1-127).
  • Hardware configurable speed (9600, 19200, 38400, 57600, 115200)


HTC-MODBUS-V-L
(wall mounting)




HTC-K-MODBUS-V-L
(duct mounting)
