Q52D3H063M4C2 NANO 63H Network Analyzer
Q52D3H063M4C2 NANO 63H Network Analyzer

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: FRER

Q52D3H063M4C2 NANO 63H Network Analyzer

  • Q52D3H063M4C2
  • Medición TRMS/cos fi/THD
  • Entrada actual 1 A, 5 A (z przekładnika)
  • Numero de fases 3
  • Interfaz RS485
  • fuente de alimentación 230 V AC

Q52D3H is an advanced, compact network analyzer designed for three-phase, three- or four-wire systems with unbalanced loads. The NANO H version, in addition to standard measurements of key electrical network parameters, offers a set of advanced analytical functions, enabling more precise monitoring and improved diagnostics of the system’s operating conditions.

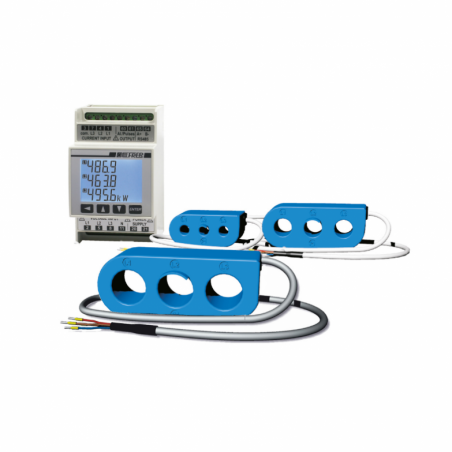

By utilizing miniature triple current transformers (CTs), the Q52D3H analyzer ensures easy installation even in confined spaces, significantly reducing installation costs and wiring time. The device is available in four versions with direct current measurement: 63A, 125A, 160A, and 250A, eliminating the need for external transformers. The compact transformer design is fully compatible with modular circuit breakers, facilitating seamless integration into control cabinets.

The analyzer is equipped as standard with an RS485-Modbus RTU communication interface, allowing integration with SCADA systems and remote network parameter monitoring. Optionally, the device can be fitted with one (or two, if serial communication is not in use) programmable alarm output, which can function as a pulse output for active or reactive energy retransmission and enables connection to analog output modules.

Menos
Lee mas
1.002,45 PLN
1.002,45 PLN Precio bruto / uds.
815,00 PLN Precio neto / pz.
Impuestos incluidos
Disponibilidad: Disponible Cantidad, piezas: 52
