Fabricante: HMi Elements

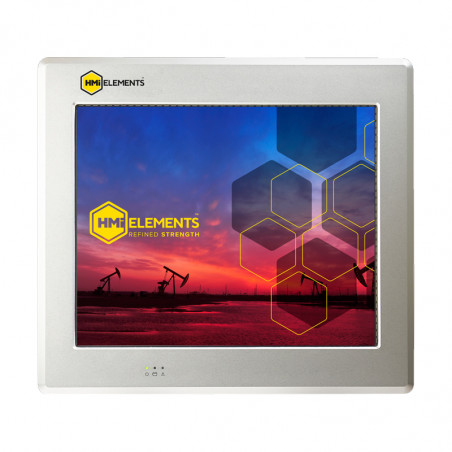

Interfaz para la zona 2 - HMI 1302-Z2

With easy-to-use features, touchscreen controls and a super-bright, 1000 Nit glove friendly, multi touch 19” sunlight viewable display. Lightweight, rugged, IP66 and field maintainable.


Characteristics

  • Light [&] slim (weighing in at just 21.5Kg / 47.3Ibs; 150 mm / 5" thin)
  • Certification (certified to ATEX, IECEx, AEx (NEC505) Section 18 CSA 22,2)
  • Crisp [&] bright display (1000 nit)
  • Super fast processor (the intel core i7 processor works 100% from -40°C to +60°C - no throttling back here)
  • Precision engineered (machined from a single piece of aluminium, this is precision engineering at its finest)
Product type PC workstation
Model No 1302-Z2
Typical EX code ATEX/IECExEx nA [ic] IIC T4 Gc (Gc)
CSA Class 1 Div 2, AEx Class 1 Zone 2
Ex tc IIIC T135°C Dc
Display size 19"
Display type Sunlight viewable glove-friendly 1000 nit capacitive LCD touchscreen
Resolution SXGA; 1280 x 1024, wide viewing angle, 24 bit colour
Processor options Dual Core Atom 1,86 GHz Core i7-3517UE, 1,7GHz (TPM compliant)
Operating system Windows 10 Enterprise LTSB, Windows 7 Professional
HDD/SSD Options 64GB SSD (standard)
+ second 64GB SSD (optional)		 64GB SSD (standard) also available 128GB or 256GB SSD
+ second drive 64, 128, 256GB SSD (optional)
RAM 4GB 8GB + option to upgrade to 32GB
COMM options 2 wired Ethernet port triple speed (10/100/1000Mbits/s) or 1 wired Ethernet port triple speed (10/100/1000Mbits/s) with Fiber Optic Ethernet, Wi-Fi (802.11 b/g/n)
Keyboard / mouse / touchscreen Intrinsically safe PS/2 interface
USB 2 x port USB
Serial communications One RS232 and one RS422/RS485
Ingress protection IP66 / NEMA4 and NEMA 4X
Operating temperature -40°C ÷ +60°C
Storage temperature -40°C ÷ +85°C (-40°F ÷ +185°F)
Weight 12,2 kg / 26,9 lbs
Max. dimensions W 476mm (18,74”) x H 427mm (16,81”) x D 90mm (3,54”)
Mounting options VESA, Yoke, Panel
Shock [&] vibration Shock: In accordance with BS EN60068-2-27:2009
Vibration: In accordance with BS. EN60068-2-6:2008


Design and specifi cations subject to change without notice.

Errors and omission excepted.
