Fabricante: FLEXTEC

Consolas de control - FLS SINOPTIC

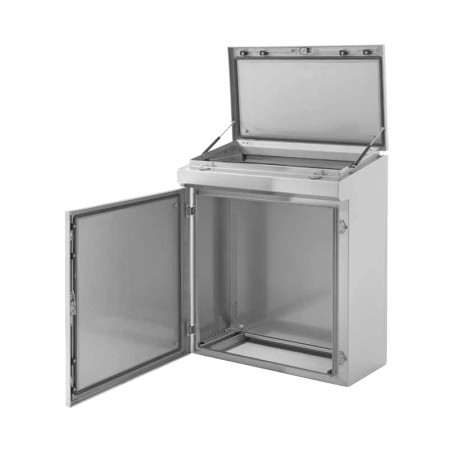

Series FL Console and synoptic console

Application
Unmatched protection for housing electrical and electronic equipment in both indoor and outdoor settings where corrosion-resistance is needed, with constant exposure to water, contaminants and other corrosive elements.
Construction
AISI 304 Scotch-Brite 240 stainless steel, satin finish. Built from one stainless steel sheet, 1,5mm gauge. Two overlapping doors, right on left, for sizes ver 1000mm in width. 10° sloped top cover, 90° opening with gas pistons. Stainless steel hidden hinges, 120° opening. One-piece foam-in-place polyurethane gasket. Stainless steel M6 grounding studs on door and structure. Removable cable entry plate on bottom, with gasket. Senzimir back panel (2,5mm), folded on all sides for added rigidity.
Optionals
Product can be customized to client's specifics needs: holes, cutouts and different sizes as per your drawings with AISI 316 and specialty stainless steels, stainless steel back panel
Series FL Console and synoptic console


Accessories Data Pocket, Locking System, Cooling System, Panel Protection Window, Gas Pistons, Fee

Series FL Console and synoptic console accessories Series FL Console and synoptic console accessories Series FL Console and synoptic console accessories

Dimensions

Series FL Console and synoptic console dimensions


BACK PANEL TOP COVER AVAILABLE AREA DOOR AREA
B-70mm
H-146mm		 B-60mm x DIM 396 B - 57mm
H - 57mm

Product code Dimensions Doors
B mm H mm P mm Nr.

FL 50 91 40

 500 910 400 1

FL 60 91 40

 600 910 400 1

FL 80 91 40

 800 910 400 1

FL 100 91 40

 1000 910 400 1

* FL 120 91 40

 1200 910 400 2

* FL 140 91 40

 1400 910 400 2

* FL 160 91 40

 1600 910 400 2

* FL 180 91 40

 1800 910 00 2

* FL 200 91 40

 2000 910 400 2
* Two overlapping doors without centerpost; right block left.

Series FLS Console and synoptic console

Application
Unmatched protection for housing electrical and electronic equipment in both indoor and outdoor settings where corrosion-resistance is needed, with constant exposure to water, contaminants and other corrosive elements.
Construction
AISI 304 Scotch-Brite 240 stainless steel, satin finish. Built from one stainless steel sheet, 1,5mm gauge. Synoptic panel with 80° opening and safety locking mechanism. 10° sloped top cover, 90° opening with gas pistons. Stainless steel hidden hinges, 120° opening. One-piece foam-in-place polyurethane gasket. Stainless steel M6 grounding studs on door and structure. Removable cable entry plate on bottom, with gasket. Senzimir back panel (2,5mm), folded on all sides for added rigidity.
Optionals Product can be customized to client's specifics needs: holes, cutouts and different sizes as per your drawings with AISI 316 and specialty stainless steels, stainless steel back panel.

Series FLS Console and synoptic console


Accessories Data Pocket, Locking System, Cooling System, Panel Protection Window, Plinth, Feet

Series FLS Console and synoptic console accessories Series FLS Console and synoptic console accessories Series FLS Console and synoptic console accessories

Dimensions

Series FLS Console and synoptic console Dimensions


BACK PANEL TOP COVER AVAILABLE AREA DOOR AREA SYNOPTIC PANEL AVAILABLE AREA
B-70mm
H-530mm		 H1300 B-70mm x DIM 400
H1500 B-70mm x DIM 450		 B-150mm
H-57mm		 H1300 B-70mm x DIM 283
H1500 B-70mm x DIM 490

Product code Dimensions Flange
B mm H mm P mm Nr.

FLS 80 130 83

 800 1300 830 2

FLS 100 130 83

 1000 1300 830 2

FLS 120 130 83

 1200 1300 830 2

FLS 140 130 83

 1400 1300 830 4

FLS 160 130 83

 1600 1300 830 4

FLS 180 130 83

 1800 1300 830 4

FLS 200 130 83

 2000 1300 830 4

FLS 80 150 83

 800 1500 830 2

FLS 100 150 83

 1000 1500 830 2

FLS 120 150 83

 1200 1500 830 2

FLS 140 150 83

 1400 1500 830 4

FLS 160 150 83

 1600 1500 830 4

FLS 180 150 83

 1800 1500 830 4

FLS 200 150 83

 2000 1500 830 4
