M3SWVS - Convertidor de señal con MV, voltaje y corriente de entrada DC con dos salidas - 12 mm de ancho

  • M3SWVS

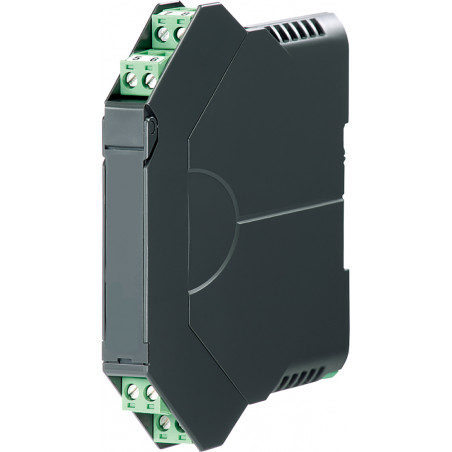

M3SWVS is a converter with DC mV input and output, current and voltage with two independent outputs - 12mm wide.


Features

  • Perfect to use as a quick solution, multi-functional spare part
  • Provides an isolated DC signal
  • Two independent output signals with the same parameters
  • DIN rail mounting
  • AC / DC power
  • 2000V AC insulation

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection To be set when ordering
Double Output Yes
Power AC / DC
Working Temperature - 20 to + 55 ° C
Montage On a DIN rail
Dimensions 12x106x110.5mm
