Fabricante: M-SYSTEM

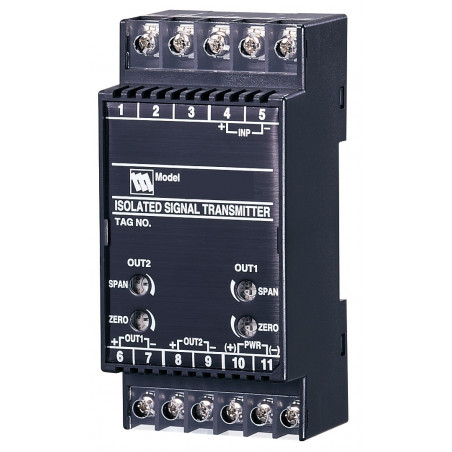

W5FV - Convertidor de señal con entrada de entrada DC, voltaje y corriente - configurable con dos salidas

  • W5FV

W5FV is a converter with DC mV input and output, current and voltage. Ranges of inputs and outputs calibrated with buttons on the front of the housing. Two independent outputs.


Features

  • Programmable using the buttons on the front of the housing
  • AC / DC
  • LED power indicator
  • DIN rail mounting
  • 2000V AC insulation

Types of inputs: current or voltage with different ranges
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength With DC power: 2000V AC
With AC power: 1500V AC
Range selection Configurable with buttons on the front of the case
Double Output Yes
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 45x41x97mm
Menos
Lee mas
