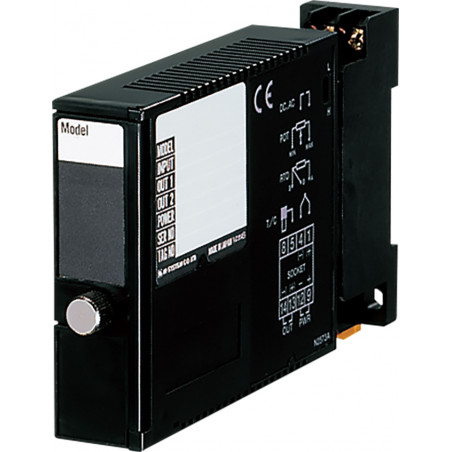

M2EXM - Convertidor de señal con entrada resistiva
M2EXM - Convertidor de señal con entrada resistiva

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: M-SYSTEM

M2EXM - Convertidor de señal con entrada resistiva

  • M2EXM

M2EXM is a converter with universal input and output (programmable by the user).


Features

  • Mounting socket for each model - enables easy assembly / disassembly and quick conversion of converters no need for wiring.
  • Calibration possible via PC
  • AC / DC power
  • OEL display
  • DIN rail mounting
  • 2000V AC insulation

    • Types of inputs: resistance 100Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility to make a range of inputs / outputs on a special basis order.


    < td style = "padding-left: 20px"> DC: 2000V AC
    AC: 1500V AC < / tbody>
    Wire connection < / th> M3 screw terminals
    Separation Input / Output / Power
    Dielectric strength
    Selection ranges Programmable One Step Cal / PC
    Double Output None
    Power AC / DC
    Operating Temperature - 5 to + 55 ° C
    Mounting On a DIN rail < / td>
    Dimensions 29.5x83x124mm
