Fabricante: M-SYSTEM

M2PP - Convertidor de señal con salida de entrada y frecuencia

  • M2PP

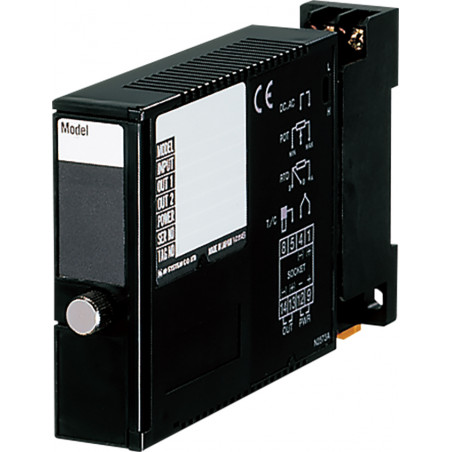

M2PP is a converter with frequency input and output.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • DC / AC power
  • Galvanic isolation of signals
  • DIN rail mounting
  • 2000V AC insulation

Input types: dry contact, pulse
Types of outputs: dry contact, pulse
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength For DC power: 2000V AC
When powered by AC: 1500V AC
Range selection To be determined while ordering
Double Output None
Power DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
