For PCB instalation.
KG 4001![]() |
KG 4005![]() |
KG 4007![]() |
KG 4008![]() |
KG 4009![]() |
KG 4003![]() |

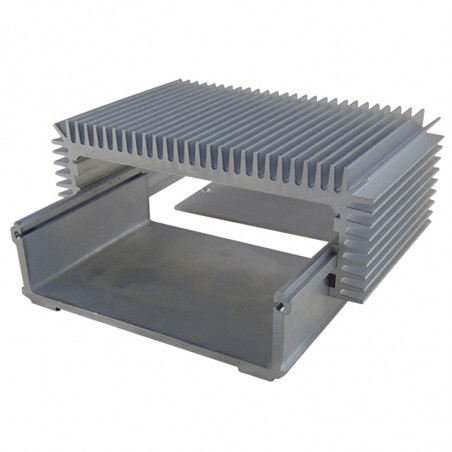

Casings with heat sink–available in 3 versions: V1, V2, V3
Stable profile case with integrated cooling fins and screwed-in exterior front panels. The case is designed with 3 different adjusable heights. Profile also available in meter-lengths. Case-lenghts: Length, processing and surface in accordance with your specification. Combinations of all surfaces available. Standard-lengths: inside: 120 mm, 160 mm, 200 mm; outside: 124 mm, 164 mm, 204 mm. Surface finishes: anodising to customer’s specification (natural, black, other colours) chromating on request (natural, yellow) lacquering in all RAL colours
Outside | Inside | |
---|---|---|
WG 4191 | 44 mm | 67 mm |
WG 4192 | 54 mm | 77 mm |
WG 4193 | 64 mm | 87 mm |
