Fabricante: FANDIS

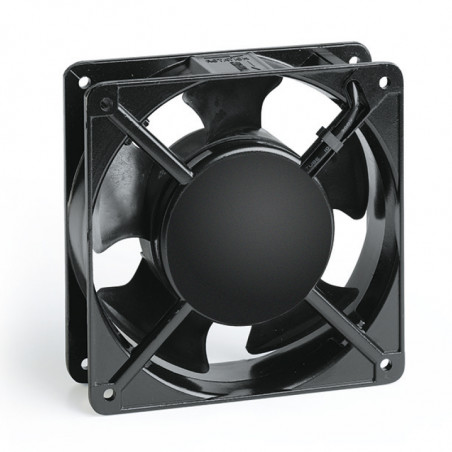

Fans de Costech / Fandis

Technical data
• T – Connector power supply terminal
• W – Cable power supply terminal
• Ball bearing
• Operation temperature –20 - +70C
• life time (@+40C, 65%humidity) 70 000h



Table. Compact ventilators DC

Type Voltage
[V DC]		 Zakres Voltage wej.
[V DC]		 Power
[W]		 Speed
[turn/min.]		 Noise level
[dB]		 Pressure
[Pa]		 Efficiency
[m3/h]		 Dimension A
[mm]		 Dimension B
[mm]		 Dimension C
[mm]
D08A05HWBA00 24 17…27 3.84 3100 34.40 40.60 67.30 80 71.5 25
D09A05HWBZ00 24 17…27 3.60 2900 31.30 33.20 74 92 82.5 25
D12B05HWBZ00 24 17...27 7.68 2800 42.80 66.12 178 120 105 38




Technical data
• T – Connector power supply terminal
• W – Cable power supply terminal
• Ball bearing
• Operation temperature –20 - +70C
• life time (@+40C, 65%humidity) 40 000h



Table. Compact ventilators AC

Type Voltage
[V DC]		 Frequency
[V DC]		 Power
[W]		 Speed
[turn/min.]		 Noise level
[dB]		 Pressure
[Pa]		 Efficiency
[m3/h]		 Dimension A
[mm]		 Dimension B
[mm]		 Dimension C
[mm]
A08B23SWBF00 230 50 9 2600 33 35 35 80 71.5 25
A09A23STBY00 230 50 12 2700 34 50 55 92 82.5 25
A09B23SWBY00 230 50 13 2800 38 51 76 92 82.5 38
A12A23STBY00 230 50 12 2600 39 66.70 110 120 105 25
A12B12HTBW00 115 50 17 2900 48 75 167 120 105 38
A12B23STBW00 230 50 22 2700 44 82 165 120 105 38
A12B23HTBMT0
Zakres temp pracy -40°C…90°C		 230 50 18 2700 42 64 150 120 105 38
A12B23HWBWF0
Wersja IP55		 230 50 23 2650 43 66 150 120 105 38
A17T23SWBM00 230 50 34 2500 50 150 300 172 162 55
C18C23HTBF00 230 50 29 2800 50 150 330 172 162 51

Scheme



//
