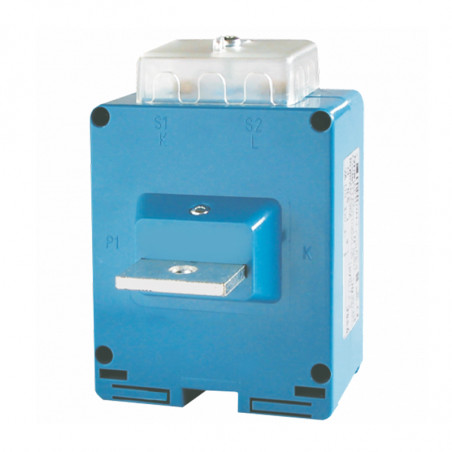

Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
Technical Data
Thermoplastic material | UL94-V0 |
Operating frequency | 50-60Hz |
Voltage | 0.72kV |
Test voltage | 3kV * 1’50Hz |
Insulation | Klasa E |
Protection degree | IP 20 |
Continuous overcurrent | 1.2In |
Rated short-time thermal current (I th) | 60 In |
Rated dynamic current (I dyn) | 2.5 x I th |
Safety factor | N<5 |
max. power dissipation (max range value) | <3,5W |
Operating temperature | -25 +50o C |
Storage temperature | -40 +80o C |
Manufactured according to |
IEC/E N 60044-1, |
Ratio | Burdens [VA] | Code | ||
---|---|---|---|---|
cl. 0.5 | cl.1 | 5 A | 1 A | |
5 A | 20 | 35 |
TAC020005X05 |
TAC020005X01 |
10 A | 20 | 35 |
TAC020010X05 |
TAC020010X01 |
15 A | 20 | 35 |
TAC020015X05 |
TAC020015X01 |
20 A | 20 | 35 |
TAC020020X05 |
TAC020020X01 |
25 A | 20 | 35 |
TAC020025X05 |
TAC020025X01 |
30 A | 20 | 35 |
TAC020030X05 |
TAC020030X01 |
40 A | 20 | 35 |
TAC020040X05 |
TAC020040X01 |
50 A | 20 | 35 |
TAC020050X05 |
TAC020050X01 |
60 A | 20 | 35 |
TAC020060X05 |
TAC020060X01 |
80 A | 20 | 35 |
TAC020080X05 |
TAC020080X01 |
100 A | 20 | 35 |
TAC020100X05 |
TAC020100X01 |
120 A | 20 | 35 |
TAC020120X05 |
TAC020120X01 |
150 A | 20 | 35 |
TAC020150X05 |
TAC020150X01 |
200 A | 20 | 35 |
TAC020200X05 |
TAC020200X01 |
250 A | 20 | 35 |
TAC020250X05 |
TAC020250X01 |
300 A | 20 | 35 |
TAC020300X05 |
TAC020300X01 |
400 A | 20 | 35 |
TAC020400X05 |
TAC020400X01 |
500 A | 20 | 35 |
TAC020500X05 |
TAC020500X01 |
600 A | 20 | 35 |
TAC020600X05 |
TAC020600X01 |
Dimensions
