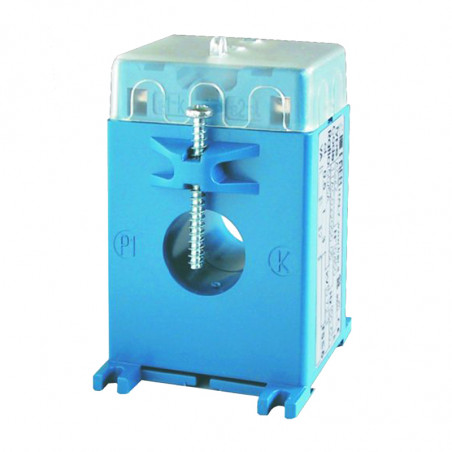

TRANSFORMER CORRIENTE TAC022 EN CABLE DE Ø22 / RAIL DE 20X5MM
  • TRANSFORMER CORRIENTE TAC022 EN CABLE DE Ø22 / RAIL DE 20X5MM

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: FRER

TRANSFORMER CORRIENTE TAC022 EN CABLE DE Ø22 / RAIL DE 20X5MM

Technical Data

Thermoplastic material
 UL94-V0
Operating frequency
 50-60Hz
Voltage
 0.72kV
Test voltage
 3kV * 1’50Hz
Insulation
 Klasa E
Protection degree
 IP 20
Continuous overcurrent
 1.2In
Rated short-time thermal current (I th)
 40 In
Rated dynamic current (I dyn)
 2.5 x I th
Safety factor
 N<5
Maximum power dissipation (max. range value)
 <2W
Operating temperature
 -25.. +50o C
Storage temperature
 -40.. +80o C
Manufactured according to

IEC/EN 60044-1,
VDE, BS, UTE
Integrated secondary terminals
 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
40/5 A     1.5

TAC022040X05
50/5 A     2

TAC022050X05
60/5 A   1 2.5

TAC022060X05
80/5 A   2 4

TAC022080X05
100/5 A 1 3 5

TAC022100X05
120/5 A 2 4 6

TAC022120X05
150/5 A 3 5 8

TAC022150X05
200/5 A 5 10 12

TAC022200X05
250/5 A 8 10 15

TAC022250X05
300/5 A 9 10 15

TAC022300X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0,5 cl. 1 cl. 3
40/1 A     1.5

TAC022040X01
50/1 A     2

TAC022050X01
60/1 A   1 2.5

TAC022060X01
80/1 A   2 4

TAC022080X01
100/1 A 1 3 5

TAC022100X01
120/1 A 2 4 6

TAC022120X01
150/1 A 3 5 8

TAC022150X01
200/1 A 5 10 12

TAC022200X01
250/1 A 8 10 15

TAC022250X01
300/1 A 9 10 15

TAC022300X01


Dimensions

Przekładnik prądowy TAC022 na kabel Ø22/ szynę 20x5mm wymiar
