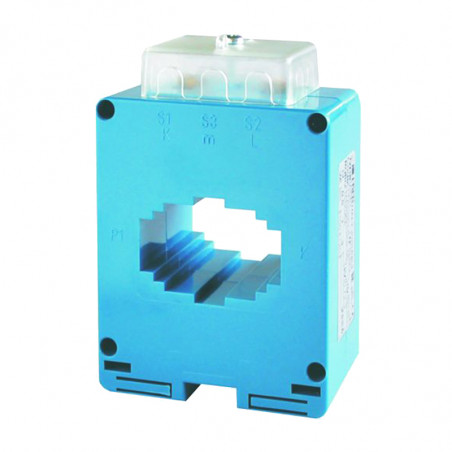

TAC051 Transformador de corriente para carril de 51x18mm
TAC051 Transformador de corriente para carril de 51x18mm

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: FRER

TAC051 Transformador de corriente para carril de 51x18mm

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1,2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <12.5W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
200/5 A 5 10

TAC051200X05
250/5 A 8 12

TAC051250X05
300/5 A 10 20

TAC051300X05
400/5 A 15 20

TAC051400X05
500/5 A 20 30

TAC051500X05
600/5 A 30 50

TAC051600X05
800/5 A 40 60

TAC051800X05
1000/5 A 50 80

TAC0511K0X05
1200/5 A 60 80

TAC0511K2X05
1500/5 A 80 100

TAC0511K5X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
200/1 A 5 10

TAC051200X01
250/1 A 8 12

TAC051250X01
300/1 A 10 20

TAC051300X01
400/1 A 15 20

TAC051400X01
500/1 A 20 30

TAC051500X01
600/1 A 30 50

TAC051600X01
800/1 A 40 60

TAC051800X01
1000/1 A 50 80

TAC0511K0X01
1200/1 A 60 80

TAC0511K2X01
1500/1 A 80 100

TAC0511K5X01


Dimensions

Przekładnik prądowy TAC051 wymiary
