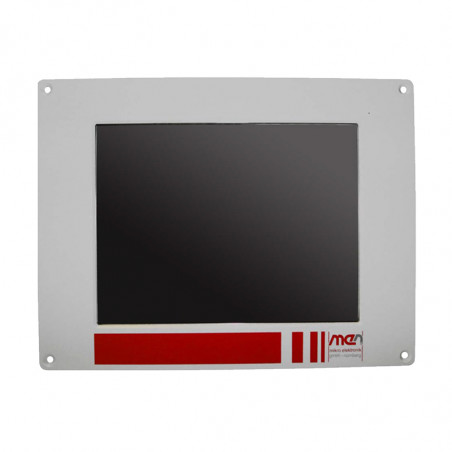

Informática de panel industrial DC2 para aplicaciones industriales con hombres 10.4 Pantalla táctil
  • Informática de panel industrial DC2 para aplicaciones industriales con hombres 10.4 Pantalla táctil

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: MEN Mikro Elektronik

Informática de panel industrial DC2 para aplicaciones industriales con hombres 10.4 Pantalla táctil

The DC2 with its capacitive touch panel is cont-rolled by the Intel ® Atom™ XL Z520PT running at 1.33 GHz, comes with 1 GB of DDR2 SDRAM and a built-in 2 GB microSD™ card. The two Ether-net interfaces have switch functionality to provi-de Ethernet connection to subsequent intelligent displays. The unit‘s control electronics are directly attached to the back of the display, hence bigger screen sizes or other aspect ratios can be realized easily. A PCI Express ® Mini Card slot can be used to incorporate wireless functions.

  • 10.4“ 4:3 TFT LCD, 1024 x 768 pixels resolution
  • 2 Fast Ethernet, 2 USB
  • 40 to +85°C operating temperature
  • Prepared for e1 (automotive), IP65 (front), IP20 (rear)
  • Windows® XP Embedded image (120-day trial version)
Menos
Lee mas

Envíe una consulta

¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?

Contacta con nosotras
SOLICITA EL PRODUCTO close
Gracias por enviar tu mensaje. Responderemos lo antes posible.
SOLICITA EL PRODUCTO close
Vistazo
enviar una consulta

Añadir a la lista de deseos

Usted debe estar conectado

The DC2 with its capacitive touch panel is cont-rolled by the Intel ® Atom™ XL Z520PT running at 1.33 GHz, comes with 1 GB of DDR2 SDRAM and a built-in 2 GB microSD™ card. The two Ether-net interfaces have switch functionality to provi-de Ethernet connection to subsequent intelligent displays. The unit‘s control electronics are directly attached to the back of the display, hence bigger screen sizes or other aspect ratios can be realized easily. A PCI Express ® Mini Card slot can be used to incorporate wireless functions.

  • 10.4“ 4:3 TFT LCD, 1024 x 768 pixels resolution
  • 2 Fast Ethernet, 2 USB
  • 40 to +85°C operating temperature
  • Prepared for e1 (automotive), IP65 (front), IP20 (rear)
  • Windows® XP Embedded image (120-day trial version)
