Convertidores ferroviarios e industriales DC / DC con una potencia 180-280 W
  • Convertidores ferroviarios e industriales DC / DC con una potencia 180-280 W

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: PREMIUM

Convertidores ferroviarios e industriales DC / DC con una potencia 180-280 W

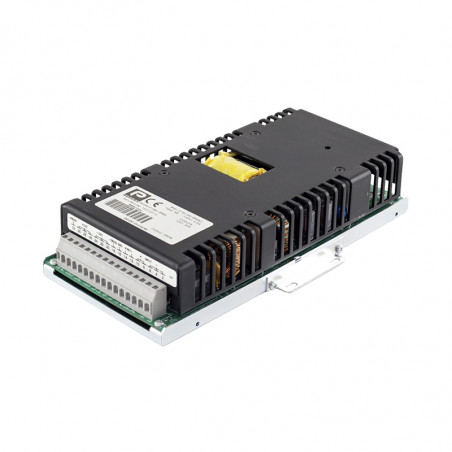

Railway 180-280W Industrial DC/DC converters

All DC/DC converters from the CTS-240 series meet the requirements of EN50155 for electronic equipment used in rolling applications and are approved for the fire and smoke EN45545-2. This converter series has been designed to fit in a wide variety of railway applications and track record in numerous projects over the years, offering a 5 year warranty.

All models have adjustable output voltage and generate up to 280W. The CTS-240 converter series offers a wide variety of input-output combinations and allow parallel connection. These DC/DC converters are presented in Eurocard 3U format and have an optional alarm. In addition, they allow easy mounting on surface, subrack or DIN rail. They are also cooled by natural convection and with a robust design, it can fit in harsh environments being able to operate at up to -40ºC to 85ºC.

The CTS-240 has an up to date high efficiency circuit design that gives models up to 92% efficiency and protection against overloads, short-circuits, reverse input voltage, input under-voltage and over-currents.


KEY FEATURES
  • Designed according to EN50155
  • Fire and smoke: EN45545-2 approved
  • High input-output isolation
  • Standard size Eurocard 3U
  • Adjustable output voltage
  • Input voltage OK LED
  • Output voltage presence LED
  • Remote inhibit
  • Option: remote sensing or alarm
  • Efficiency up to 92%
ACCESSORIES
  • 19″ rack front panel (3U 9TE)
  • Mounting base
  • DIN rail mounting Kit
  • Redundant connection
TERMINAL OPTIONS
  • Spring clamp terminal
  • DIN 41612 H15
Model24Vin
14,4V... 30V
36Vin
21,6V... 45V
48Vin
28,8V... 60V
72Vin
43,2V... 90V
110Vin
66V... 144V
5Vout

CTS-240-6655

180W 80%

CTS-240-6672

180W 80%

CTS-240-6659

180W 80%

CTS-240-6663

180W 81%

CTS-240-6667

180W 81%
12Vout

CTS-240-6656

240W 83%

CTS-240-6673

240W 83%

CTS-240-6660

240W 84%

CTS-240-6664 240W 88%

CTS-240-6668 240W 86%

24Vout

CTS-240-6657

240W 87%

CTS-240-6674

280W 87%

CTS-240-6661

280W 88%

CTS-240-6665

280W 90%

CTS-240-6669

280W 91%
48Vout

CTS-240-6658

240W 88%

CTS-240-6675

280W 88%

CTS-240-6662

280W 89%

CTS-240-6671

280W 90%

CTS-240-6670

280W 92%
