Convertidores industriales DC / DC con una capacidad de 180-280W.
  • Convertidores industriales DC / DC con una capacidad de 180-280W.

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: PREMIUM

Convertidores industriales DC / DC con una capacidad de 180-280W.

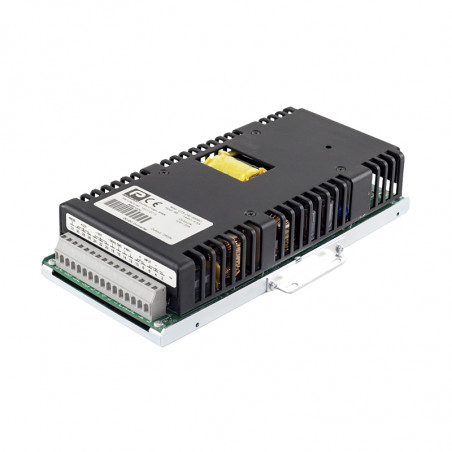

Industrial 180-280W DC/DC converters

The CRS-240 are DC/DC converters up to 280W power with multiple input-output combinations. They also offer up to 92% efficiency.

KEY FEATURES
  • Switching frequency: 140KHz
  • High input-output isolation
  • Standard size Eurocard 3U
  • Adjustable output voltage
  • Remote sensing
  • Input voltage OK LED
  • Output voltage presence LED
  • Remote inhibit
  • Efficiency up to 92%

PRODUCT WARRANTY: 3 YEARS

ACCESSORIES

  • 19″ rack front panel (3U 9TE)
  • Mounting base
  • DIN rail mounting Kit
  • Redundant connection
TERMINAL OPTIONS
  • Spring clamp terminal
  • DIN 41612 H15

 12Vin
9V ... 15V
24Vin
18V ... 30V
48Vin
36V ... 72V
72Vin
50,4V ... 90V
110Vin
77V ... 144V
220Vin
165V ... 275V
5Vout

CRS-240-6351

180W 79%

CRS-240-6355

180W 80%

CRS-240-6359

180W 80%

CRS-240-6363

180W 81%

CRS-240-6367

180W 81%

CRS-240-6371

180W 81%
12Vout

CRS-240-6352

180W 80%

CRS-240-6356

240W 83%

CRS-240-6360

240W 84%

CRS-240-6364

240W 88%

CRS-240-6368

240W 86%

CRS-240-6372

240W 86%
24Vout

CRS-240-6353

200W 82%

CRS-240-6357

240W 87%

CRS-240-6361

280W 88%

CRS-240-6365

280W 90%

CRS-240-6369

280W 91%

CRS-240-6373

280W 91%
48Vout

CRS-240-6354

200W 82%

CRS-240-6358

240W 88%

CRS-240-6362

280W 89%

CRS-240-6366

280W 90%

CRS-240-6370

280W 92%

CRS-240-6374

280W 92%
