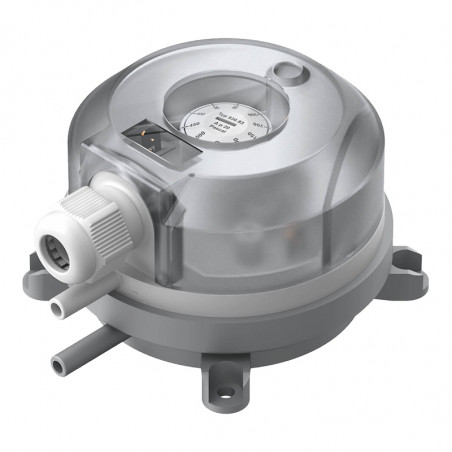

Las fotos son solo para fines informativos. Ver especificaciones de producto
please use latin characters
Maximum operating pressure: | 10 kPa for all pressure ranges |
Temperature range: | medium and ambient temperature from –20°C to +85°C |
storage temperature from –40°C to +85°C | |
Diaphragm material: | silicone, tempered at 200°C, free of gas emissions; other materials available on request |
Electrical rating: | standard version max. 1,5A(0,4A)/250VAC |
low-voltage version 0,1A/24VDC | |
Pressure connections: | 2 plastic pipe connection pieces (P1 and P2), external diameter 6.0 mm: |
P1 for connection to higher pressure (marked +) | |
P2 for connection to lower pressure (marked –) | |
Electrical connections: | AMP flat plug 6.3x0.8 mm in accordance with DIN 46244 or push-on screw terminals; cable conduit with cable strain relief |
Arrangement of contacts: | 1 Break contact, 2 Operating contact, 3 Power supply line |
Protection category: | IP 54 with cover |
IP 00 without cover | |
Certificates: | switch according to VDE 0630 - 1,5A (0,4A) / 250 V AC |
Casing material: | P1 for connection to higher pressure (marked +) P2 for connection to lower pressure (marked –) |
Weight: | 160/115 g |
Lifetime: | 106 connections |
Type | Adjustment range for upper switching pressure | Switching differential set to | Tolerance for upper and lower switching pressure | |
---|---|---|---|---|
from | up to | |||
930,80 | 0,2 | 2,0 mbar | 0,2 mbar | ±15% |
930,83 | 0,5 | 5,0 mbar | 0,2 mbar | ±15% |
930,84 | 0,3 | 4,0 mbar | 0,2 mbar | ±15% |
930,85 | 2,0 | 10,0 mbar | 1,0 mbar | ±15% |
930,86 | 5,0 | 25,0 mbar | 1,5 mbar | ±15% |
930,87 | 10,0 | 40,0 mbar | 5,5 mbar | ±15% |
Caution
In this pressure switch, the pressure is set on the setting knob with the pressure scale without the pressure gauge setting. The operating pressure differentials can also be adjusted with the handwheel. Beforementioned parameters are correct for vertical positions, the connection at the bottom is also correct. In a horizontal position upwards, switching on takes place at a higher pressure of approx. 0.2 mbar.
Description | Article number |
---|---|
Metal mounting bracket L-shaped | 6401 |
Metal mounting bracket S-shaped | 6402 |
Set consisting of three push-on screw terminals | 6415 |
Climaset® consisting of 2 m PVC hose and 2 angled metal pipes | 6550 |
Climaset® consisting of 2 m Silicone hose and 2 angled metal pipes | 6556 |
Climaset® consisting of 2 m PVC hose and 2 plastic tubes | 6555 |
Climaset® consisting of 2 m Silicone hose and 2 plastic tubes | 6557 |
Casing 6344![]() |
Assembly 6401![]() |
Assembly 6402![]() |
Climaset 6555/6557![]() |
Climaset 6550/6556![]() |
