Fabricante: Brandmaier Informative Leuchtanzeigen

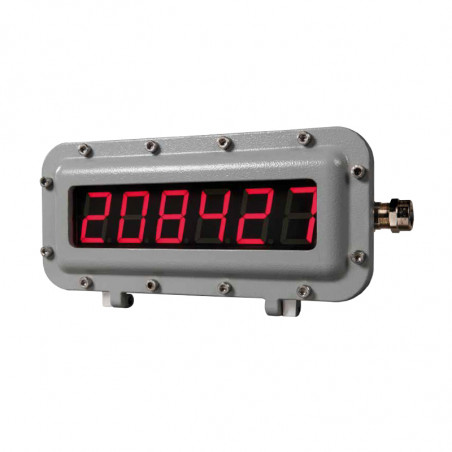

Ex-6 pantallas LED digitales

Displays Ex - 6 digital LED

6 - Digit Ex-LED-counter Ex d IIBT6 or Ex de IIBT6 with 57mm high digits

A)
Counter with junction box TYP EA-08/270-D657
Dimensions (WxHxD): 540x170x135,5
For 18 terminals max. 2.5sqmm and 6x entries M20 x 1.5

B)
Counter with directly cable entry Typ E-08-D657
Dimensions (WxHxD): 380x170x135.5 mm
max. 2x directly cable entries possib-le.



Certificate number TÜV 04 Atex 2472

  • Counter and/or measured value display
  • All inputs electrically isolated
  • Power supply 16-35VDC or 100-240VAC
  • Serial interface RS485
  • Frequency 0.01Hz to 5Khz max.
  • Data back up by power failure
  • Inputs: Switch contact, namur, frequency or Voltage pulse.
  • Digital inputs based on DIN 43864 class B, max. 15V and max. 15mA
  • Reset-input
  • Analog input 0(4)-20mA. Lineariser to compensate any non-linear variable
  • Bus. Modbus RTU, master or slave operation possible

Technical specifications

  • 6-digits - red seven-segment LED 57mm high (yellow or green optional)
  • Operating temperature -40° C to +55° C
  • Power supply 16-35 V DC or 100-240 V AC; 9.6VA
  • Protection IP65
  • Weight Approx. 12 Kg
  • Housing material Aluminum (copper free)
  • Location Ex-Zone 1 - 2 - 21 - 22

Options

  • Inputs for max. 6 external Push-but-tons. Modbus display for up to 128 addresses programmable via 8 posi-tions dip switch.
  • Programmable by external push-but-tons.
  • Alarm output optoelectronic solid sta-te or relay or volt free contact.
