Fabricante: DACPOL

MÓDULO DUPLEX - M2C..P

Two element power diode block with radiator RY.

Properties:
• Two element power diode block with both side cooling– RY
• Natural cooling


Typical applications:
• rectifiers, converters, supplies.
• DC power regulators
• power contactors
• soft-starts

Options:
• Standard – Diagram. 1
• Execution with current busses
• With blacken radiator
• Thermal protection
• RC circuit
• fuse
• forced cooling

Power block selection:
• There are different semiconductors used, depending on the load. Used semiconductor size is given in the Table 1.

Scheme


Operation conditions:
One element power blocks are used in power electronic systems.
• Ambient air temperature -100 C - +400 C;
• Atmospheric pressure 860hPa do 1060hPa;
• Humidity less then 80% @ temperature 400 C
• Cooling air without aggressive factors.



Table 1 Power blocks parameters


Module type Mean current IF(AV) [A] Blocking voltage  U RRM
    [V]		 Overcurrent
I FSM
[A]		 Semiconductor size
[mm]		 Block Weight
[kg]
M2C7P 450…650 400…2400 7000…10000 6,9
M2C8P 630…1000 400…8500 10000…24000 6,9
M2C9P 1000…2000 400…7500 20000…42000 16,4
M2C11P 1000…3200 400…6000 27000…65000 18,30

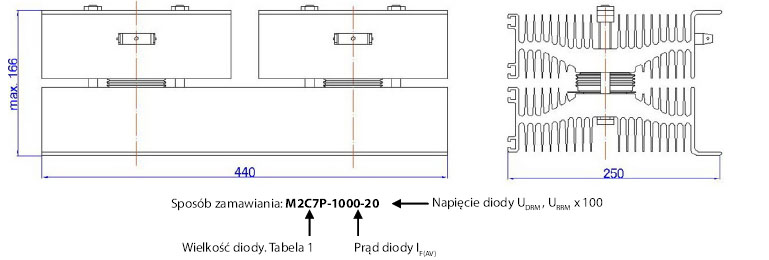

Power block scheme M2C...P
