Fabricante: STACEM

V-RINGS

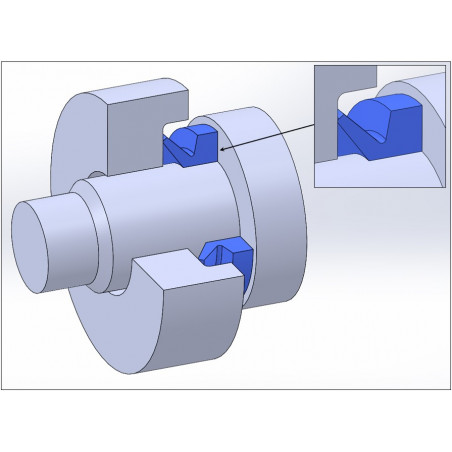

V-rings seal axially against a vertically arranged opposing face. The high mobility and flexibility of the sealing lip allows greater tolerance levels and angular deviation in comparison to other shaft seals.



Advantages

  • Simple and effective seal
  • Easy installation, small assembly space requirements
  • No wear on the shaft


Function

The V-ring entirely of rubber is a flexible axial lip seal, directly installed in slight extension on the shaft. It is therefore intended to ensure an axial dynamic sealing and non-radial. The V-ring is a rotary shaft seal, which is suitable for high speeds.

It has the effect of regulating tolerance levels and angular deviation and prevents the leakage of lubricants from inside while providing protection against dirt and spray from outside.



Materials

V-rings are normaly made of NBR, resistant to wear, which offers the advantages of a high resistance to mineral oils, greases, emulsions, weak acids and many other fluids.

For applications with higher temperatures or aggressive media, we recommend the use of FPM. For special applications, please refer to the table of our mixtures.



Standard seal types

VA VS VL VE
Possible shaft diameters from 3 mm to 2020 mm from 45 mm to 210 mm from 115 mm to 630 mm from 300 mm to 2010 mm
