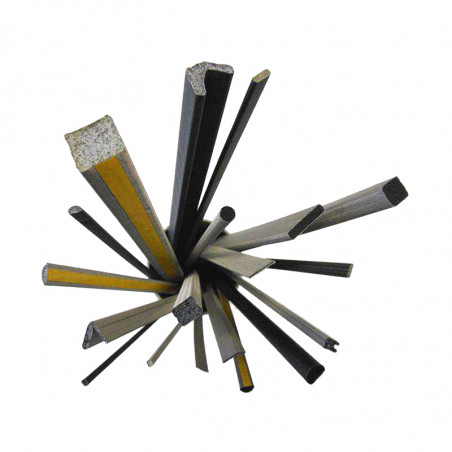

Junta de espuma cubierta con un material conductor.
  • Junta de espuma cubierta con un material conductor.

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: TEMAS

Junta de espuma cubierta con un material conductor.

Fabric over foam gaskets are made of a resilient foam core, bonded over with conductive fabric. More than70 different profiles offer unlimited selection for any application. Some profiles contain rigid inserts. Metallized conductive fabric bonded to resilient core (available in urethane foam, neoprene sponge) offers a good shielding efficiency and works as a seal to block air, light and dust. All profiles are available with UL94-V0 specifications



Product features:

  • conductive fabric wrapped over foam or sponge core: easy to apply and to install
  • suitable for use on metal enclosures or metallized plastics (low compression force)
  • over 100db average shielding efficiency in the range 100mhz-10ghz
  • rip-stop fabrics that allow self-terminating cut ends on gaskets
  • available on reels, cut-to-length or preformed ready to install gasket
  • pressure sensitive adhesive (standard)

Range of cores:

  • urethane foam (standard)  (PU)
  • neoprene sponge  (NS)
  • epdm sponge  (ES)

And fabric materials:

  • nickel copper + carbon (SI)
    nickel copper (NC)
Order example

FS.064.PU.SI square section, 6.4x6.4mm, Ni/Cu+C black fabric over Urethane foam, adhesive
FD.015.038.PU.Nc/2000 D-shape, 1.5X3.8mm, Ni/Cu fabric over Urethane foam, length 2000mm
FR.032.064.PU.NC-V0 rectangular section, 3.2x6.4mm, Ni/Cu fabric over Urethane foam, UL94-V0

Rectangular

Uszczelka piankowa pokryta materiałem przewodzącym

Size chart

P/N Height  (H)
[mm]		 Width (W)
[mm]

FR.005.050

 0.5 5.0

FR.005.070

 0.5 7.0

FR.005.100

 0.5 10.0

FR.010.030

 1.0 3.0

FR.010.040

 1.0 4.0

FR.010.050

 1.0 5.0

FR.010.070

 1.0 7.0

FR.010.100

 1.0 10.0

FR.010.170

 1.0 17.0

FR.015.620

 1.5 62.0

FR.020.030

 2.0 3.0

FR.020.040

 2.0 4.0

FR.020.050

 2.0 5.0

FR.020.070

 2.0 7.0

FR.020.100

 2.0 10.0

FR.020.127

 2.0 12.7

FR.020.170

 2.0 17.0

FR.020.210

 2.0 21.0

FR.020.300

 2.0 30.0

FR.020.413

 2.0 41.3
P/N Height  (H)
[mm]		 Width (W)
[mm]

FR.030.040

 3.0 4.0

FR.030.090

 3.0 9.0

FR.032.048

 3.2 4.8

FR.032.064

 3.2 6.4

FR.032.095

 3.2 9.5

FR.032.127

 3.2 12.7

FR.040.200

 4.0 20.0

FR.050.080

 5.0 8.0

FR.050.100

 5.0 10.0

FR.050.413

 5.0 41.3

FR.060.150

 6.0 15.0

FR.064.095

 6.4 9.5

FR.064.127

 6.4 12.7

FR.075.150

 7.5 15.0

FR.080.127

 8.0 12.7

FR.095.127

 9.5 12.7

FR.100.254

 10.0 25.4

FR.115.105

 11.5 10.5

FR.159.254

 15.9 25.4

FR.170.100

 17.0 10.0

Angle-Fold

Uszczelka piankowa pokryta materiałem przewodzącym
P/N Height  (H)
[mm]		 Width (W)
[mm]
FV.100.110 10.0 11.0
FV.170.150 17.0 15.0

Rectangular

Uszczelka piankowa pokryta materiałem przewodzącym Uszczelka piankowa pokryta materiałem przewodzącym
P/N Height / Width (H /W)
[mm]

FS.030

 3.0

FS.050

 5.0

FS.060

 6.0

FS.064

 6.4

FS.095

 9.5

FS.100

 10.0

FS.127

 12.7

FS.150

 15.0

FS.170

 17.0

FS.200

 20.0
P/N Height (H)
[mm]		 Width (W)
[mm]

FD.015.038

 1.5 3.8

FD.023.023

 2.3 2.3

FD.025.064

 2.5 6.4

FD.030.038

 3.0 3.8

FD.032.023

 3.2 2.3

FD.036.064

 3.6 6.4

FD.036.095

 3.6 9.5

FD.048.076

 4.8 7.6

FD.064.095

 6.4 9.5

FD.095.127

 9.5 12.7

Knife-edge

Knife-edge
Uszczelka piankowa pokryta materiałem przewodzącym Uszczelka piankowa pokryta materiałem przewodzącym

P/N : FK.027.113

P/N : FJ.053.033



Special profiles

Uszczelka piankowa pokryta materiałem przewodzącym Uszczelka piankowa pokryta materiałem przewodzącym

P/N : FK.027.113

P/N : FJ.053.033

Other size, configurations or ready-to-mount finished gaskets (according to your drawing) available upon request
