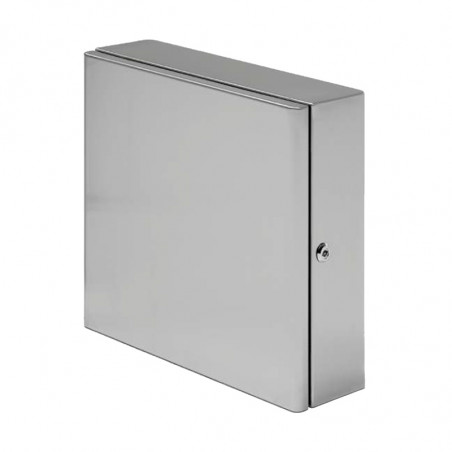

Paneles de control simples y rotos serie FM hecha de acero inoxidable.
  • Paneles de control simples y rotos serie FM hecha de acero inoxidable.

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: FLEXTEC

Paneles de control simples y rotos serie FM hecha de acero inoxidable.

Application

Wide range of small and medium size boxes, all available from stock, offering unmatched protection for electrical and electronic components in critical environments, designed to be installed within reach of the end user.

Construction

M8 fasteners for back plate mounting. Four M6 fasteners for earthing. One-piece foam-in-place polyurethane gasket, mechanical placement. Stainless steel hidden door hinges, 120° opening. Senzimir back plate, 2.0mm gauge. Two ergonomic handles in AISI 304. Optional keyboard mounting system.

Optionals

Product can be customized to client's specifics needs: holes, cutouts and different sizes as per your drawings with AISI 316 and specialty stainless steels stainless steel, also available in micropeened stainless steel

Accessories
Piping
Joint


Pulpity sterownicze proste i łamane serii FM ze stali nierdzewnej akcesoria Pulpity sterownicze proste i łamane serii FM ze stali nierdzewnej akcesoria Pulpity sterownicze proste i łamane serii FM ze stali nierdzewnej akcesoria

Dimensions

Pulpity sterownicze proste i łamane serii FM ze stali nierdzewnej wymiary

HANDLE SIZE AVAILABLE FRONT
AND BACK COVER AREA		 BACK PANEL
H-40mm B-95mm
H-70mm		 B-62mm
H-32mm


Product code Dimensions
B mm H mm P mm

FM 40 30 16

 400 300 160

FM 45 35 16

 450 350 160

FM 45 45 16

 450 450 160

FM 50 45 16

 500 450 160

*FM 50 50 16

 500 500 160

FM 60 50 16

 600 500 160

* Add "T" at the end of the product code to order panel with keyboard option. (ie. FMM 50 50 16 T = Suspended Panel with handles and keyboard)
Specify need for handles:
FM = panel without handles FMM = panel with two handles
