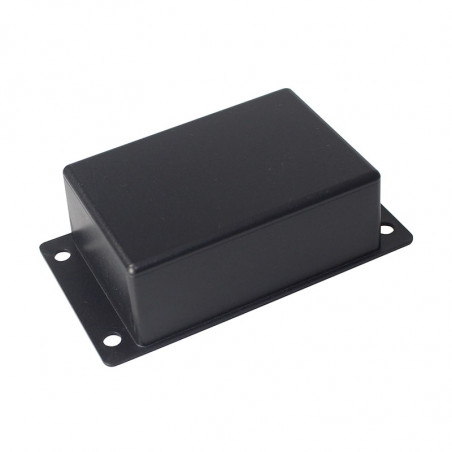

Carcasa para el vertido de la serie 500.
  • Carcasa para el vertido de la serie 500.
  • Carcasa para el vertido de la serie 500.

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: CAMDENBOSS

Carcasa para el vertido de la serie 500.

  • Moulded in ABS UL94-HB
  • Flush-fitting lid mounted by 4x fixing screws
  • Lugs provide added security once mounted by restricting access
  • Flanged body with 4x mounting holes
  • Ideal for partial or complete potting
  • Compliant with water absorption specifications to DIN53495
  • High-rigidity and impact strength
  • Highly resistant to most chemicals


Specification

  • Materials: ABS UL94-HB as standard, UL94-V0 to order
  • Operating temperature: -20°C to + 80°C
  • Standard colours: black









Symbol Lenght Width Height Wall thickness
RX505A 36mm 56mm 26mm 17mm
RX506A 42mm 62mm 30mm 19mm
RX507A 48mm 68mm 34mm 21mm
RX508A 56mm 76mm 40mm 24mm
RX509A 66mm 86mm 46mm 26mm
RX510A 76mm 96mm 52mm 29mm

Envíe una consulta

¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?

Contacta con nosotras
SOLICITA EL PRODUCTO close
Gracias por enviar tu mensaje. Responderemos lo antes posible.
SOLICITA EL PRODUCTO close
Vistazo

Añadir a la lista de deseos

Usted debe estar conectado

  • Moulded in ABS UL94-HB
  • Flush-fitting lid mounted by 4x fixing screws
  • Lugs provide added security once mounted by restricting access
  • Flanged body with 4x mounting holes
  • Ideal for partial or complete potting
  • Compliant with water absorption specifications to DIN53495
  • High-rigidity and impact strength
  • Highly resistant to most chemicals


Specification

  • Materials: ABS UL94-HB as standard, UL94-V0 to order
  • Operating temperature: -20°C to + 80°C
  • Standard colours: black









Symbol Lenght Width Height Wall thickness
RX505A 36mm 56mm 26mm 17mm
RX506A 42mm 62mm 30mm 19mm
RX507A 48mm 68mm 34mm 21mm
RX508A 56mm 76mm 40mm 24mm
RX509A 66mm 86mm 46mm 26mm
RX510A 76mm 96mm 52mm 29mm
