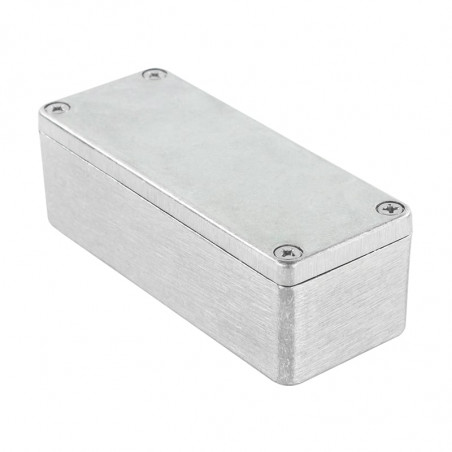

Heavy duty aluminium diecast boxes for industrial, control and mechanical engineering applications.
|
![]() |
Materials | Aluminium alloy ADC-12 (Al - Si - Cu based alloy) |
---|---|
Protection class | IP65 (neoprene gasket provided for IP65 seal) |
Standard colours | Natural as standard, hammertone or powder coating optional |
Standard unit includes | Case, lid, neoprene gasket, 4x fixing screws |
Natural RAL | Lenght | Width | Height |
---|---|---|---|
5500-04 | 64mm | 58mm | 35mm |
5500-02 | 90mm | 36mm | 30mm |
5500-06 | 115mm | 65mm | 30mm |
5500-11 | 115mm | 65mm | 55mm |
5500-13 | 115mm | 90mm | 55mm |
5500-37 | 121mm | 121mm | 101mm |
5500-15 | 148mm | 108mm | 75mm |
5500-39 | 159mm | 159mm | 102mm |
5500-20 | 171mm | 121mm | 55mm |
5500-24 | 222mm | 146mm | 55mm |
5500-25 | 222mm | 146mm | 82mm |
¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?
Usted debe estar conectado
Heavy duty aluminium diecast boxes for industrial, control and mechanical engineering applications.
|
![]() |
Materials | Aluminium alloy ADC-12 (Al - Si - Cu based alloy) |
---|---|
Protection class | IP65 (neoprene gasket provided for IP65 seal) |
Standard colours | Natural as standard, hammertone or powder coating optional |
Standard unit includes | Case, lid, neoprene gasket, 4x fixing screws |
Natural RAL | Lenght | Width | Height |
---|---|---|---|
5500-04 | 64mm | 58mm | 35mm |
5500-02 | 90mm | 36mm | 30mm |
5500-06 | 115mm | 65mm | 30mm |
5500-11 | 115mm | 65mm | 55mm |
5500-13 | 115mm | 90mm | 55mm |
5500-37 | 121mm | 121mm | 101mm |
5500-15 | 148mm | 108mm | 75mm |
5500-39 | 159mm | 159mm | 102mm |
5500-20 | 171mm | 121mm | 55mm |
5500-24 | 222mm | 146mm | 55mm |
5500-25 | 222mm | 146mm | 82mm |
