SIIRETHHERM 30X Calentador de inducción
  • SIIRETHHERM 30X Calentador de inducción

Las fotos son solo para fines informativos. Ver especificaciones de producto

please use latin characters

Fabricante: TM Induction Heating

SIIRETHHERM 30X Calentador de inducción

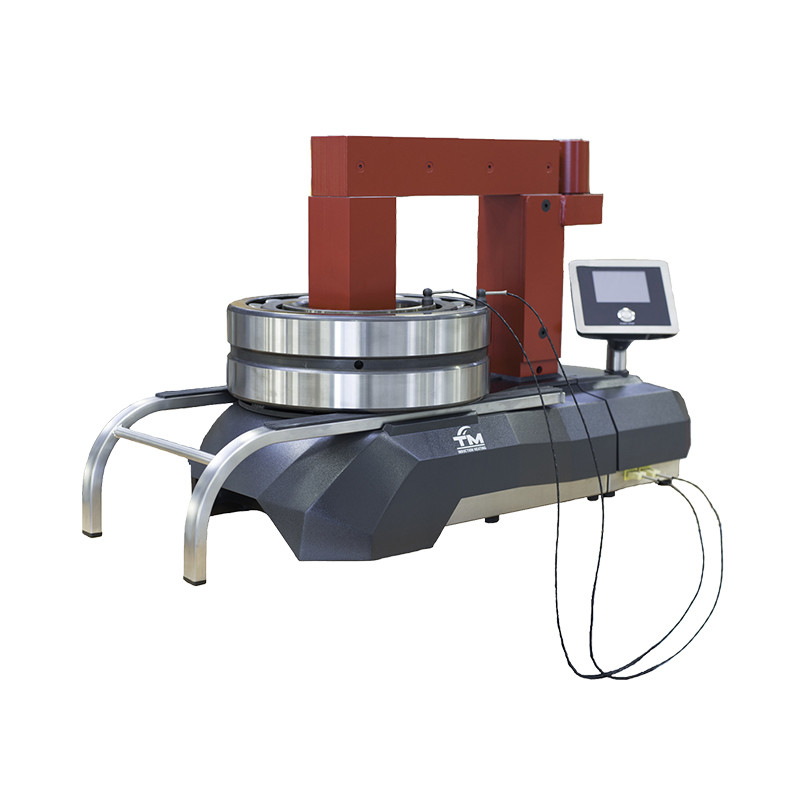

Induction heater SURETHERM 30X

Equipped with our intuitive touchscreen interface, ergonomic pivoting yokes, and two sensor heating, the SURETHERM 30X is the most complete induction heater we’ve ever built.

Designed for use in maintenance shops and production areas, this heating tool can heat parts with a maximum weight of 200 kg, and a diameter of up to 600 mm.



Specifications


Power Rating 8 kVA
Facility Power 400 - 575 V / 20 A / 50/60 Hz
Temperature Control Single / Dual
Weight 85 kg
Operating Area (WxH) 210 x 220 mm
Dimensions (LxBxH) 695 x 330 x 160 mm
Min. bore diameter (workpiece) ø 30 mm
Max. outer diameter (workpiece) ø 600 mm
Max. weight (workpiece) 200 Kg


Menos
Lee mas

Envíe una consulta

¿Estás interesado en este producto? ¿Necesita información adicional o precios individuales?

Contacta con nosotras
SOLICITA EL PRODUCTO close
Gracias por enviar tu mensaje. Responderemos lo antes posible.
SOLICITA EL PRODUCTO close
Vistazo
enviar una consulta

Añadir a la lista de deseos

Usted debe estar conectado

Induction heater SURETHERM 30X

Equipped with our intuitive touchscreen interface, ergonomic pivoting yokes, and two sensor heating, the SURETHERM 30X is the most complete induction heater we’ve ever built.

Designed for use in maintenance shops and production areas, this heating tool can heat parts with a maximum weight of 200 kg, and a diameter of up to 600 mm.



Specifications


Power Rating 8 kVA
Facility Power 400 - 575 V / 20 A / 50/60 Hz
Temperature Control Single / Dual
Weight 85 kg
Operating Area (WxH) 210 x 220 mm
Dimensions (LxBxH) 695 x 330 x 160 mm
Min. bore diameter (workpiece) ø 30 mm
Max. outer diameter (workpiece) ø 600 mm
Max. weight (workpiece) 200 Kg


Menos
Lee mas
Comentarios (0)
